[DSO150贝壳示波器套件]
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товара
| Цвет: | [成品], [成品+电源], [成品+BNC探头], [成品+电源+BNC探头], [焊接标配], [焊接标配+电源], [焊接标配+BNC探头], [焊接标配+电源+BNC探头], [散件标配], [散件标配+电源], [散件标配+BNC探头], [散件标配+电源+BNC探头] |
[温馨提示：]
[1.焊接和成品的区别在于外壳是否组装好]
[2.散件标配包含][散件，简易测试夹和外壳]
[3.焊接标配包含][焊接，简易测试夹和外壳]
[中文说明及常见问题检测链接]
http://szjiesheng.cn/cpzl
[贝壳示波器采用9V直流电源（][电源电压不可超过10V！][否则有可能烧坏机器）。套件本身不包含电源，用户需要自己准备电源，电源电流应能提供200mA以上。]
[特性指标：]
- [最高实时取样率：1Msps]
- [精度：12Bit]
- [取样缓冲器深度：1024字节]
- [模拟频带宽度： 0 - 200KHz]
- [垂直灵敏度：5mV/Div ]&[ndash; 20V/Div (按1-2-5 方式递进)]
- [垂直位移可调，并带有指示]
- [输入阻抗：1M]Ω
- [最高输入电压：50Vpp（1:1探头），400Vpp（10:1探头）]
- [耦合方式包括DC/AC/GND]
- [水平时基范围：10]μs/Div&[ndash; 50s/Div (按1-2-5 方式递进)]
- [具有自动、常规和单次触发方式，方便捕捉瞬间波形]
- [可用上升或下降边沿触发]
- [触发电平位置可调，并带有指示]
- [可观测触发之前的波形(负延迟)]
- [可随时冻结波形显示(HOLD 功能)]
- [自带1KHz /3.3V方波测试信号源]
- [带波形参数数字显示，可显示的参数有：][频率][、周期、脉宽、占空比、最大值、最小][值、平均值][、峰峰值、有效值]
- [保存/调出波形，关机波形不消失]
&[nbsp;屏幕尺寸：2.4寸高清TFT液晶屏]
[包装清单：]

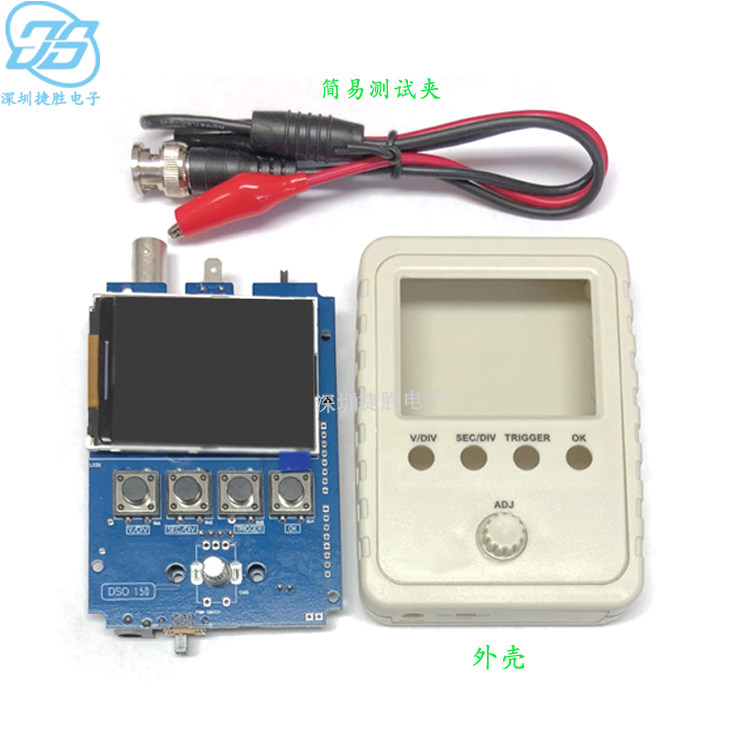

&[nbsp;散件标配发货清单如图：]
[焊接标配发货清单如图：]

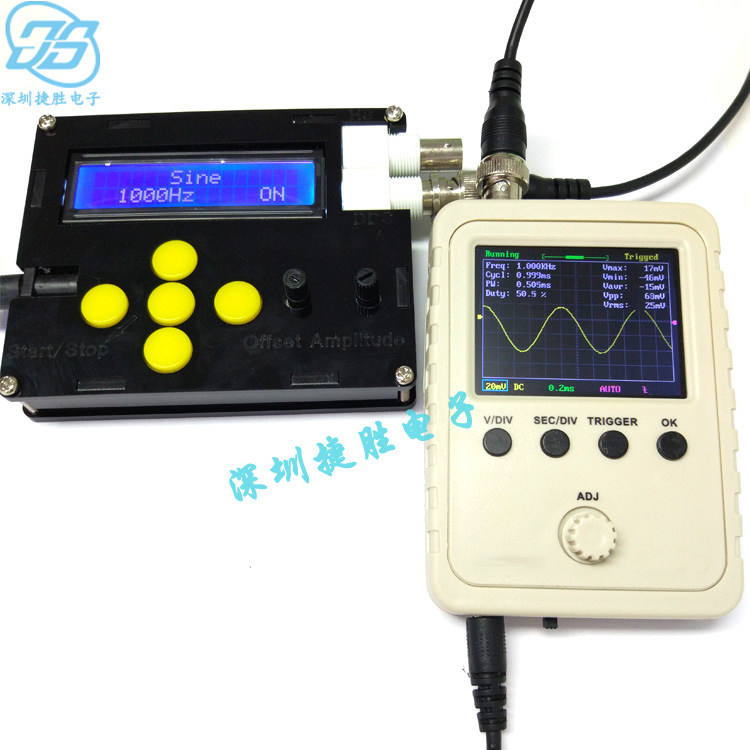

[DDS信号发生器购买链接]
[https://item.taobao.com/item.htm?spm=686.1000925.0.0.4a155084Mt5lU3]&id=549205082674
ICL8038[信号发生器购买链接]
[https://item.taobao.com/item.htm?spm=a2oq0.12575281.0.0.25911debdMnHrC]&ft=t&id=597912607779
[This DIY digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen and protective case. It]&[#39;s easy and reliable for circuit operation. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.]
Features:
[Adopt ARM Cortex-M3 processor (STM32F103C8), and include a 2.4-inch color TFT display screen.]
[Used for secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.]
[Come with instructions, easy to install and operate.]
[With Auto/Normal/Single trigger modes, easy to capture the moment waveform.]
[Available rising or falling edge trigger.]
[Observable previous waveform before trigger(negative delay).]
[Can freeze waveform display at any time(HOLD function).]
[With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.]
[Waveform storage function: will not lose the waveform after power off.]
[Short-circuit and open-circuit detection: can help the user find out the soldering error.]
TFT controller recognition function.
[The SMD has been soldered, more suitable for electronic beginner.]
Specifications:
Maximum Real-time Sampling Rate: 1MSa/s
Analog Bandwidth: 0-200KHz
Sensitivity Range: 5mV/div-20mV/idv
Maximum Input Voltage: 50Vpk (1X probe)
Input Impedance: 1M ohms/20pF
Accuracy: 12 Bits
Record Length: 1024 points
Coupling Modes: DC / AC / GND
Time Base Range: 500s/Div - 10us / Div
Trigger Modes: Auto, Normal, and Single
Trigger Position: Center of Buffer
Supply Voltage: DC 9V(8-10V)
Current Consumption:~120mA @ 9V
[Main Board Size: 94 * 65mm / 3.7 * 2.56in]
[Analog Board Size: 65 * 47mm / 2.56 * 1.85in]
Screen Size: 52 * 40mm / 2 * 1.57in
[Package Size: 14.5 * 10 * 3.7cm / 5.7 * 3.94 * 1.45in]
Package Weight: 179g / 6.33oz
Package List:
1 * Digital Oscilloscope DIY Kit
1 * Probe
1 * DIY Case
