GST отражающий лазерный инфракрасный датчик детектора движения луча
Цена: 10 109руб. (¥480)
Артикул: 588907634260
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товараПродавец:衆安科商城
Рейтинг:
Всего отзывов:0
Положительных:0
Добавить в корзину
Другие товары этого продавца
¥59912 585руб.
¥45951руб.
¥45951руб.
¥521 099руб.

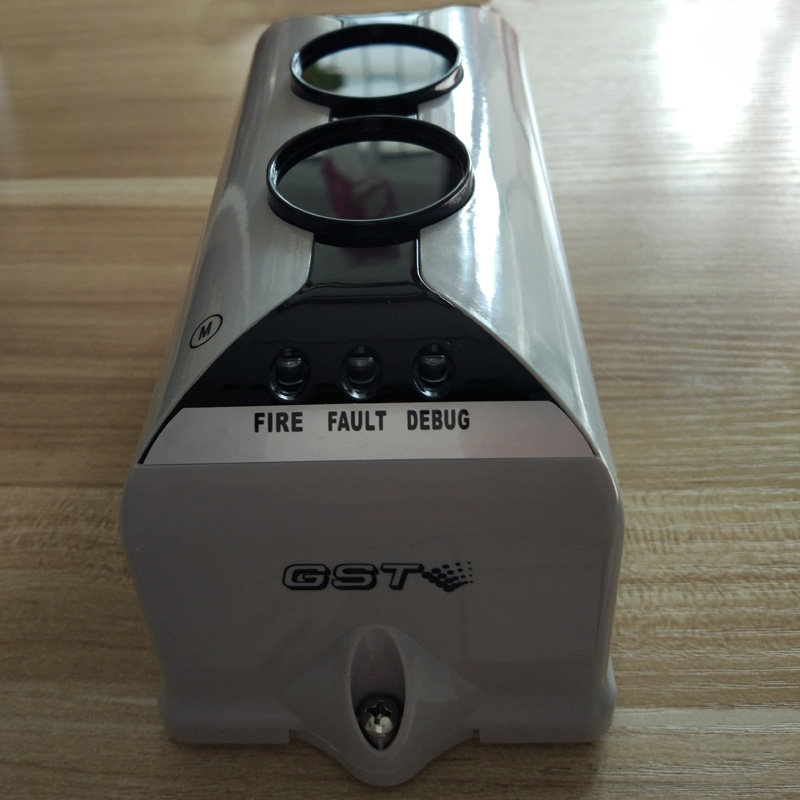

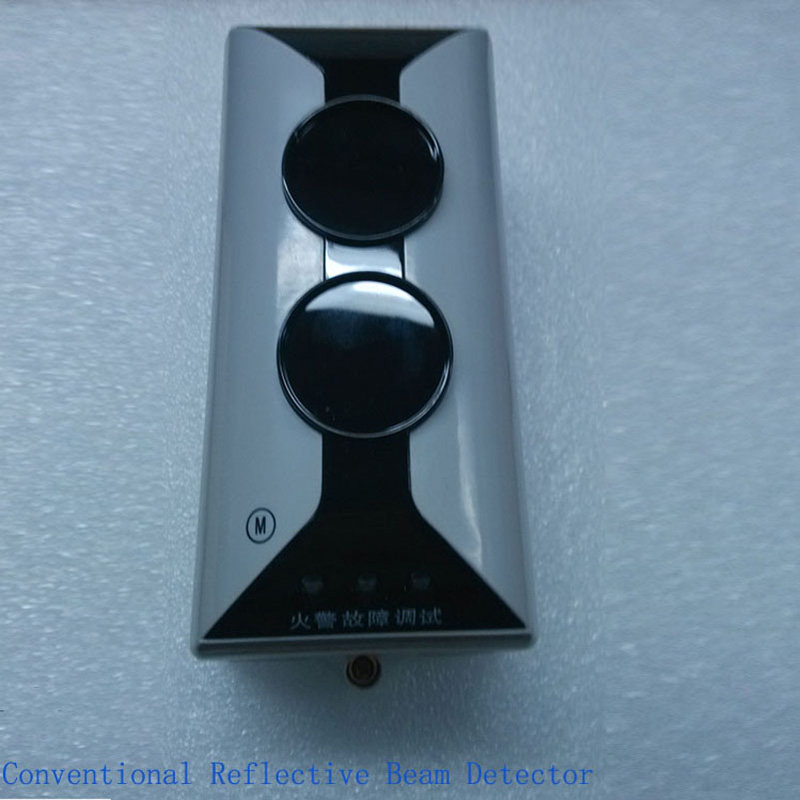

GST Reflective Laser Infrared Beam Motion Detector Sensor Beam Alarm  Bay GST  пунктирный инфракрасный лучевой датчик дыма
Features
(1) Wide operating voltage range, big monitoring areas.
(2) Combination of the emitting and receiving part makes mounting easy and opticalpathway accurate.(3) Built-in microprocessor enables intelligent judgment of fire alarm and fault.
(4) The detector can calibrate automatically, which ensures that one person complete adjustment in short time. It’s also convenient to operate.(5) Self-diagnosis function can monitor the inner fault.
(6) Automatic compensation for factors weakening received signals, such as dust contamination, positional excursion and ageing transmitter.(7) It has passive output contacts for fire alarm and fault.(8) Two sensitivity levels can be set in field.(9) The detector’s optical pathway is designed with strong anti-interference ability.(10) SMT processing technology.(11) Attractive and decent appearance.
Technical Specifications
(1) PowerVoltage: 15VDC-28VDC(2) Power Current: Commissioncurrent›20mAStandby current›12mA Alarm current›22mA(3) Fire Alarm and Fault Contact Output:Fire Alarm Relay: Contact capacity 28V/2A, which is normally open in normal state and closed in fire alarm state.Fault Relay: Contact capacity 28V/2A, which is normally open in normal state and closed in fault state.(4) Angle of Adjusting: -6°-+6°(5) Dependency Angle of Optical Pathway Orientation: 0.5¢(6) Sensitivity Level: Level 1: High sensitivity. Level 2: Medium sensitivity.(7) Indication of DetectorState:Commission: Green LED and Yellow LED are lit or flash in a certain way. See details in Section VI Commission.Normal monitoring state:Red LED flashes periodically.Fire: Red LED constantly illuminates, and Yellow LED turns off. Fire alarm should be cleared throughpowering up again.Fault: Yellow LED constantly illuminates. The detector clears the fault signal automatically if the condition causingthe fault disappears.Optical pathway obscured totally: the detector first gives fault signal and turns on Yellow LED. 20s later, it alarms fire, illuminates Red LED and turns off Yellow LED. Note: In this case, it does not mean there is a fire. After the obscurationis removed, the detector clears fault signal automatically. Fire signal has to be cleared by powering up the detector again.(8) OperatingEnvironment:Temperature: -10°C-+50°CRelative Humidity95%, non condensing(9) Monitoring Area: aximum monitoring area: 14*100=1400m2 Maximum width: 14m(10) Length of Optical Pathway: 8m-100m(11) Protection Level:Under common environment, ingress protection rating is IP20.Under special environment, ingress protection rating is IP66 through glue-seal treatment.(12) Dimension: length: 206mm width: 95mm thickness: 95mm(13) Material and Color of Enclosure: ABS, gray(14) Weight: 450g(15) Mounting HoleSpacing:Spacing for embedding: 158mmSpacings for surface mounting: 79mm€96mm
