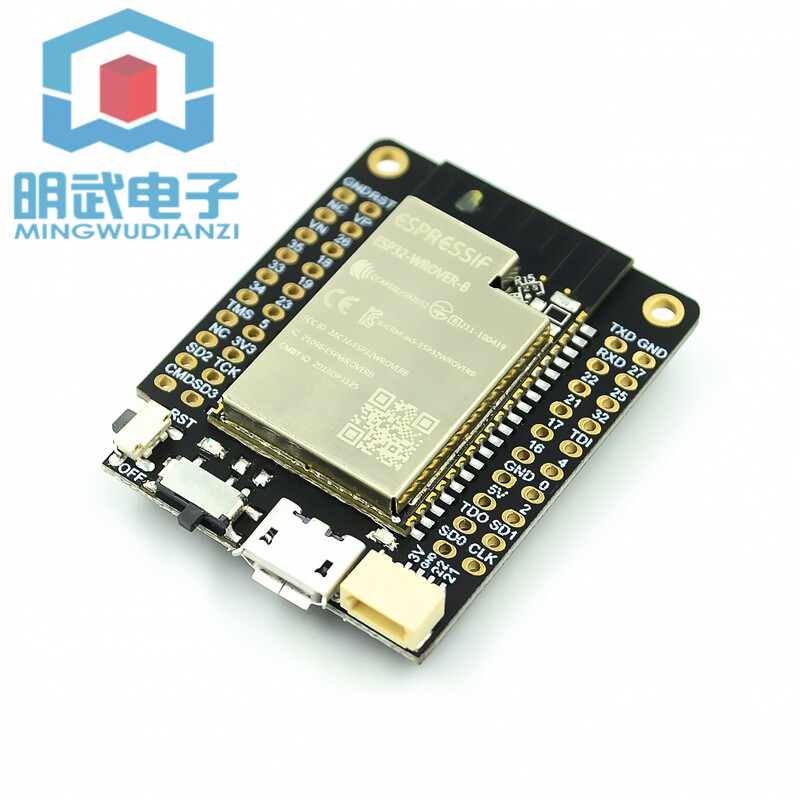

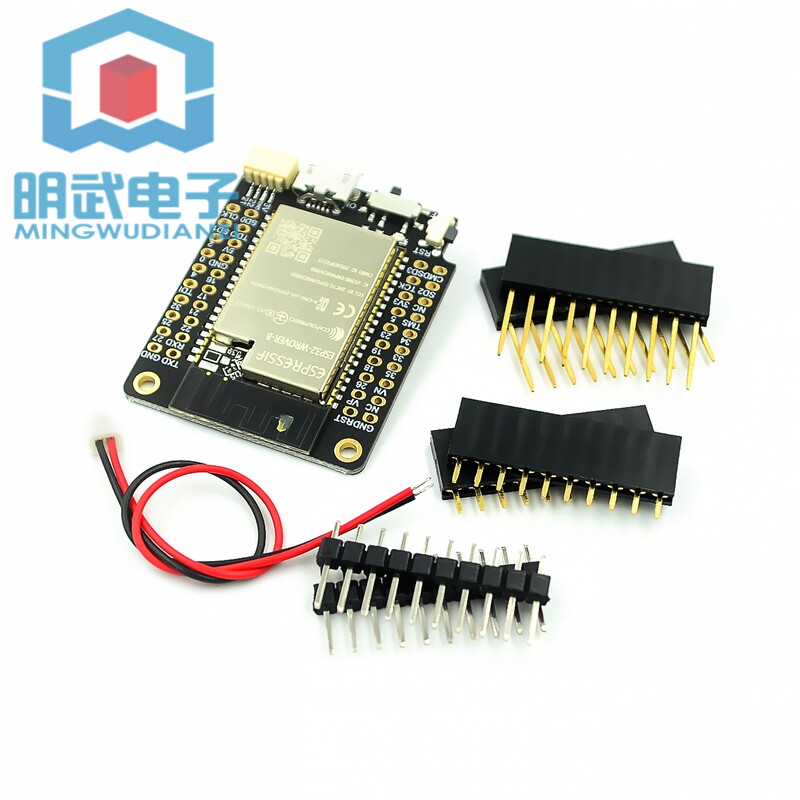

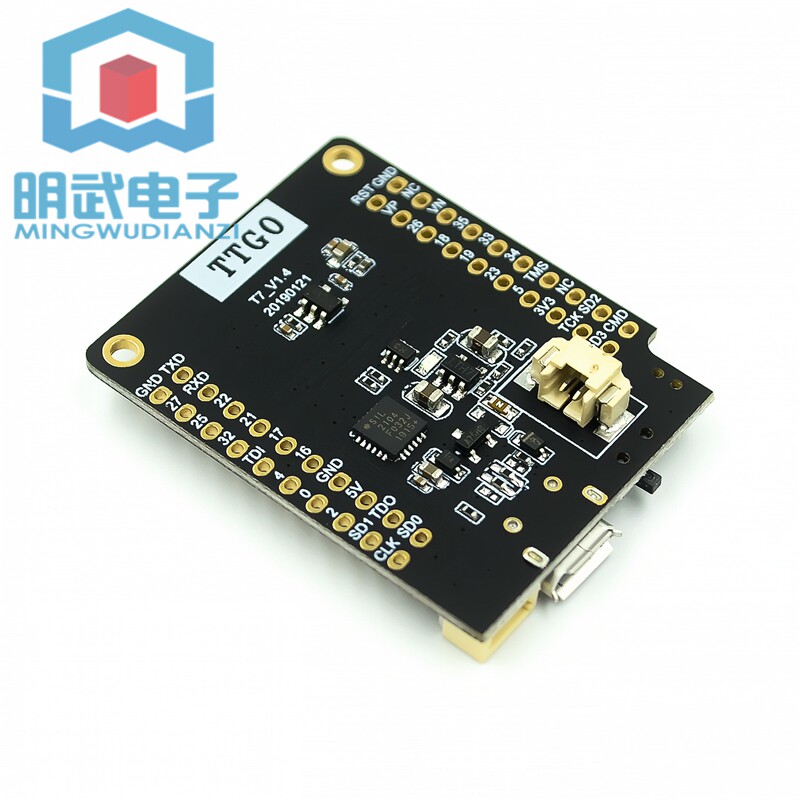

Ttgo mini32 m ╁ ╁ ╁ esp32-wrover-b psram wi-fi 钃濈 妯 ″ 潡 潡 € 鍙戞 鍙戞 鍙戞 鍙戞 鍙戞 鍙戞 鍙戞 鍙戞 鍙戞 鍙戞
Цена: 1 311руб. (¥62)
Артикул: 602145639614
Доставка по Китаю (НЕ включена в цену):
85 руб. (¥4)
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товараПродавец:都会明武电子
Рейтинг:
Всего отзывов:0
Положительных:0
Добавить в корзину
Другие товары этого продавца
¥9.4199руб.
¥ 6 5.3112руб.
¥ 4.55 3.9584руб.
¥ 4.95 4.698руб.
характеристики продукта
| Hardware Specifications | |
| Chipset | ESPRESSIF-WROVER-B 240MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor |
| FLASH | QSPI flash 4MB / PSRAM 8MB |
| SRAM | 520 kB SRAM |
| Button | reset |
| Power indicator lamp | red |
| USB to TTL | CP2104 |
| Modular interface | Uart, spi, sdio, i2c, светодиод pwm, телевизор pwm, i2s, irgpio, конденсатор touch  датчик, ADC, Daclna pre-amplifier |
| On-board clock | 40MHz crystal oscillator |
| Working voltage | 2.7V-3.6V |
| Working current | about 30mA |
| Sleep current | 10uA |
| Working temperature range | -40 ℃ ~  +85 ℃ |

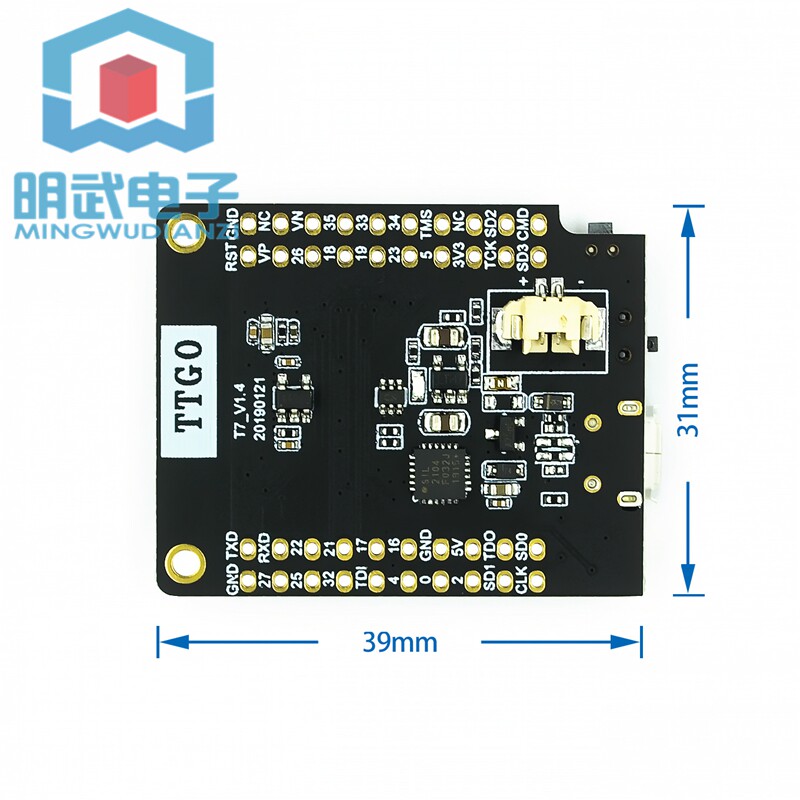

| Size&weight | 40.27mm*31.07mm*8.13mm(6.42g) |
| Power Supply Specifications | |
| Power Supply | USB 5V/1A |
| Charging current | 500mA |
| Battery | 3.7V lithium battery |
| Wi-Fi | Description |
| Standard | FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC |
| Protocol | 802.11 b/g/n (802.11n, скорость up to150Mbps)A-MPDU and A-MSDU  полимеризация, поддержка 0.4μS Protection interval |
| Frequency range | 2.4GHz~2.5GHz(2400M~2483.5M) |
| Transmit Power | 22dBm |
| Communication distance | 300m |
| Bluetooth | Description |
| Protocol | meet bluetooth v4.2BR/EDR and BLE standard |
| Radio frequency | with -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFH |
| Audio frequency | CVSD&SBC audio frequency |
| Software specification | Description |
| Wi-Fi Mode | Station/SoftAP/SoftAP+Station/P2P |
| Security mechanism | WPA/WPA2/WPA2-Enterprise/WPS |
| Encryption Type | AES/RSA/ECC/SHA |
| Firmware upgrade | UART  network/host to download and write  |
| Software Development | Support cloud server development /SDK for user firmware development |
| Networking protocol | IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT |
| User Configuration | AT + Instruction set, cloud server, android/iOSapp |
| OS | FreeRTOS |
