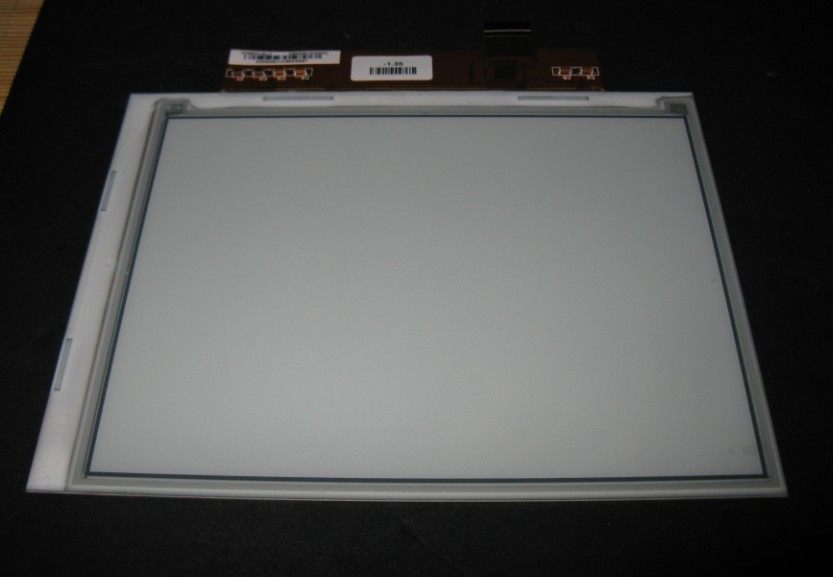

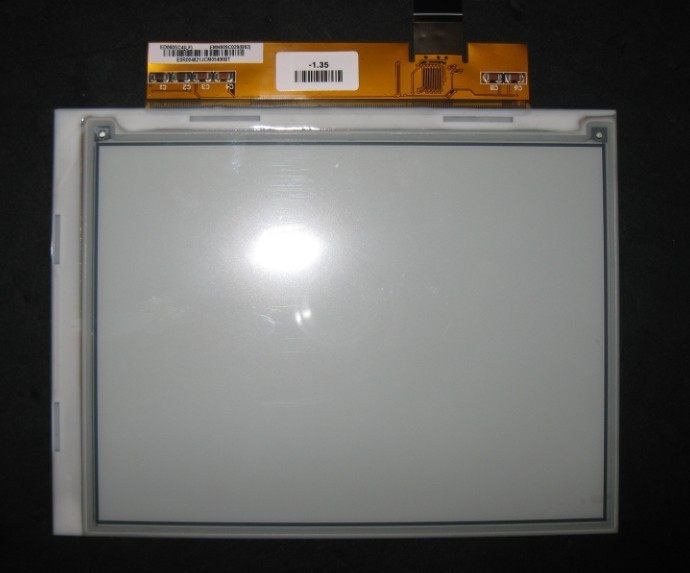

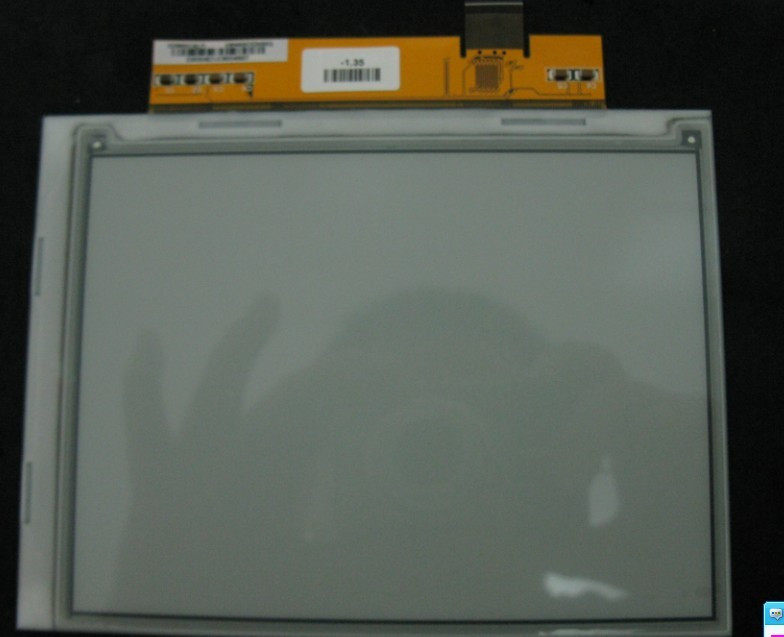

Yuantai Электронная бумага 6 -INCH Экран Оригинал 260 Yuan E -книга изменение экрана изменение экрана
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товара
10. Reliability test
TEST CONDITION METHOD REMARK
1
High-Temperature
Operation
T = +50°C, RH = 30% for
240 hrs
IEC 60
068-2-2Bp
At the end of the test, electric,
mechanical, and optical
specifications shall be satisfied.
2
Low-Temperature
Operation
T = 0°C for 240 hrs
IEC 60
068-2-2Ab
At the end of the test, electric,
mechanical, and optical
specifications shall be satisfied.
3
High-Temperature
Functional
T = +60°C, RH=26% for 240
hrs
IEC 60
068-2-2Bp
At the end of the test, electric,
mechanical, specifications shall
be satisfied.
4
Low-Temperature
Functional
T = -10°C for 240 hrs
IEC 60
068-2-2Ab
At the end of the test, electric,
mechanical, specifications shall
be satisfied.
5
High-Temperature
Storage
T = +70°C, RH=23% for 240
hrs
IEC 60
068-2-2Bp
At the end of the test, electric,
mechanical, and optical
specifications shall be satisfied.
6
Low-Temperature
Storage
T = -25°C for 240 hrs
IEC 60
068-2-1Ab
At the end of the test, electric,
mechanical, and optical
specifications shall be satisfied.
7
High-Temperature,
High-Humidity
Operation
T = +40°C, RH = 90% for
168 hrs
IEC 60
068-2-3CA
At the end of the test, electric,
mechanical, specifications shall
be satisfied.
8
High Temperature,
High- Humidity
Storage
T = +60 ° C, RH = 80% для
240hrs
IEC 60
068-2-3CA
At the end of the test, electric,
mechanical, specifications shall
be satisfied.
9 Temperature Cycle
1 Цикл: [-25 ℃ 30 минут]→[+70
℃ 30 мин]: 100 велосипедов
IEC 60
068-2-14
At the end of the test, electric,
mechanical, specifications shall
be satisfied.
10
UV exposure
Resistance
765 Вт/м2 в течение 168 часов, 40 ℃
IEC60
068-2-5Sa
Optical characteristics shall be
satisfied.
11 Package Vibration
1.04G, Frequency:
10~500Hz
Direction: X,Y,Z
Duration: 1 hours in each
direction
Full packed
for shipment
At the end of the test, electric,
mechanical, and optical
specifications shall be satisfied.
12
Package Drop
Impact
Drop from height of 122 cm
on concrete surface.
Drop sequence: 1 corner, 3
edges, 6 faces
One drop for each.
full packed for
shipment
At the end of the test, electric,
mechanical, and optical
specifications shall be satisfied.
13
Electrostatic Effect
(non-operating)
Machine model
+/- 250V, 0Ω, 200pF
IEC 62179,
IEC 62180
At the end of the test, electric,
mechanical, specifications shall
be satisfied.
14
Altitude test
Operation
700hPa ( = 3000m )
48Hr
At the end of the test, electric,
mechanical, specifications shall
be satisfied.
ED060SC4
Информация, содержащаяся здесь
Воспроизводится или раскрыта полностью или частично без предварительного письменного разрешения Prime View International Co., Ltd.Page:17
15
Altitude test
Storage
260hPa ( = 10000m )
48Hr
At the end of the test, electric,
mechanical, specifications shall
be satisfied.
16 Stylus Tapping
POLYACETAL Pen: Top
R:0.4mm
Load: 300gf
Speed: 5times/sec
Total 13,500times,
Test should be
done with a
bezel
Pass criteria– no glass
breakage or damage to
microcapsules.
Фактический уровень EMC должен быть измерен в приложении клиента

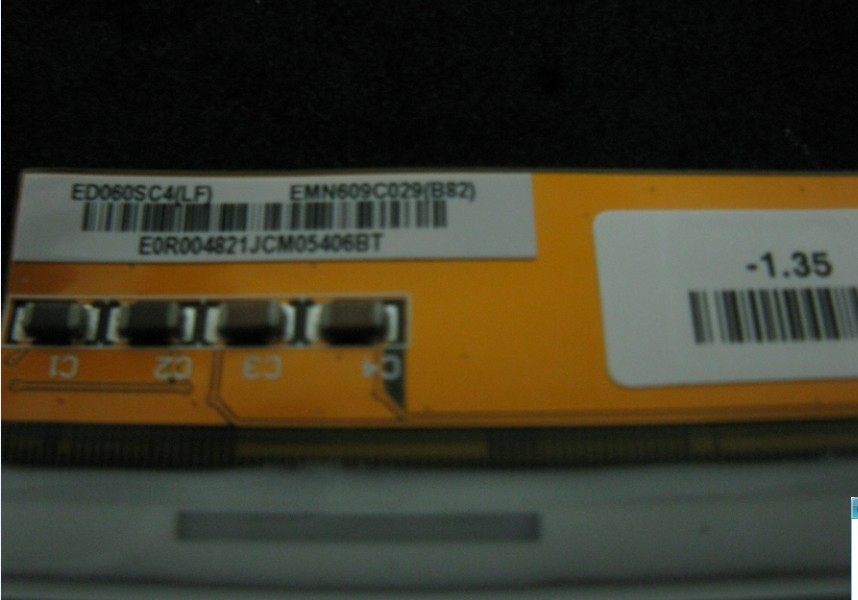

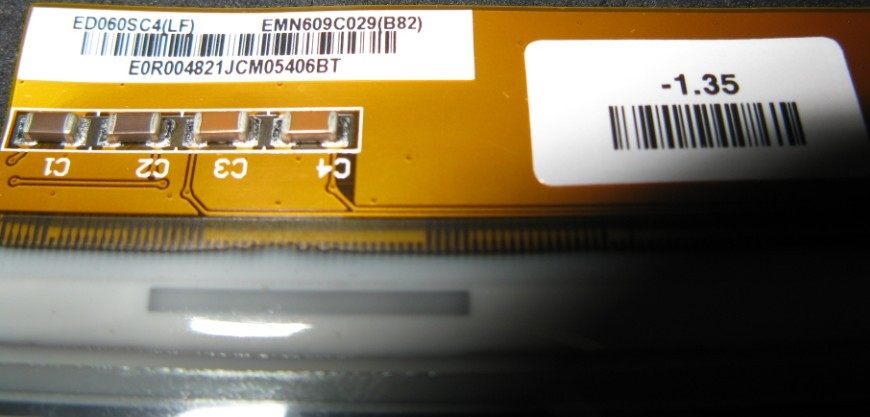

11. Bar Code definition
E0R 00 4 01 1 I 7 4 00361 A T
1 2 3 4 2 5 6 2 7 2 8
1: код модели EPD:
ED060SC4:E0R
2: Коды управления интернетом:
3: код реверсии FPL
V110:4
4: Код партии FPL:
(BL/P/B ...) 001 ~ 009: 01 ~ 99, 100 ~ 109: A0 ~ A9, 110-119: B0 ~ B9… 320~329:Z0~Z9
5: Год:
F: 2005 / G: 2006 / H: 2007 / I: 2008 / ... / Z: 2025
6 МЕСЯЦЕВ:
1: Ян. 2: февраль. ... 9: сентябрь. A: октябрь. Б: ноябрь. C: Dec.
7: серийный номер
8: код MFG:
TOC:T, PVI:P15
Altitude test
Storage
260hPa ( = 10000m )
48Hr
At the end of the test, electric,
mechanical, specifications shall
be satisfied.
16 Stylus Tapping
POLYACETAL Pen: Top
R:0.4mm
Load: 300gf
Speed: 5times/sec
Total 13,500times,
Test should be
done with a
bezel
Pass criteria– no glass
breakage or damage to
microcapsules.
Фактический уровень EMC должен быть измерен в приложении клиента
11. Bar Code definition
E0R 00 4 01 1 I 7 4 00361 A T
1 2 3 4 2 5 6 2 7 2 8
1: код модели EPD:
ED060SC4:E0R
2: Коды управления интернетом:
3: код реверсии FPL
V110:4
4: Код партии FPL:
(BL/P/B ...) 001 ~ 009: 01 ~ 99, 100 ~ 109: A0 ~ A9, 110-119: B0 ~ B9… 320~329:Z0~Z9
5: Год:
F: 2005 / G: 2006 / H: 2007 / I: 2008 / ... / Z: 2025
6 МЕСЯЦЕВ:
1: Ян. 2: февраль. ... 9: сентябрь. A: октябрь. Б: ноябрь. C: Dec.
7: серийный номер
8: код MFG:
TOC:T, PVI:P
ED060SC4
Информация, содержащаяся здесь
Воспроизведено или раскрыта полностью или частично без предварительного письменного разрешения Prime View International Co., Ltd.page:18
12. Border definition
13.Block Diagram
Panel
H Driver
(Source)
39 PIN Input
