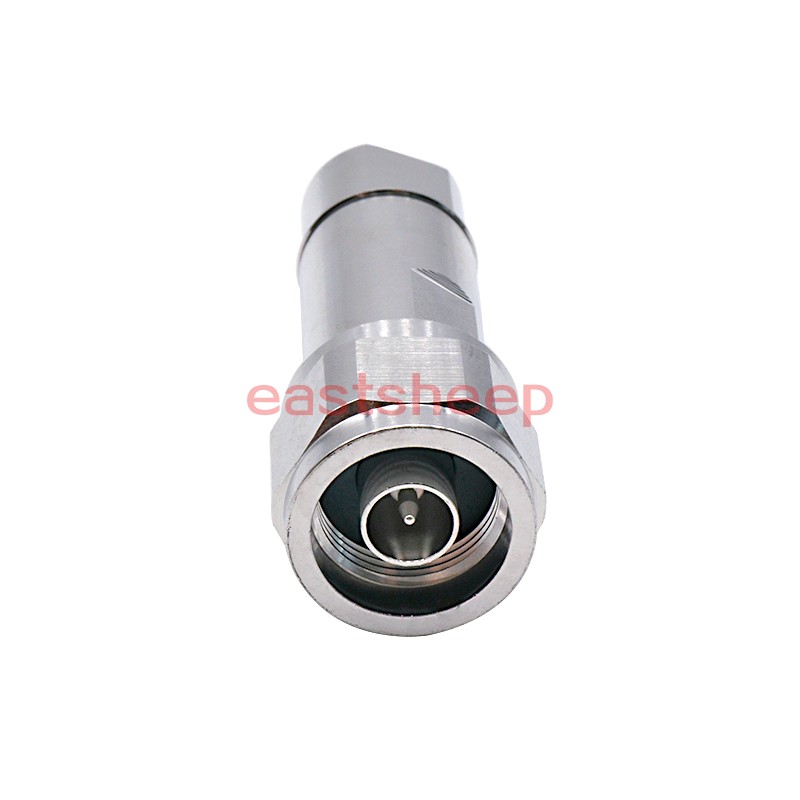

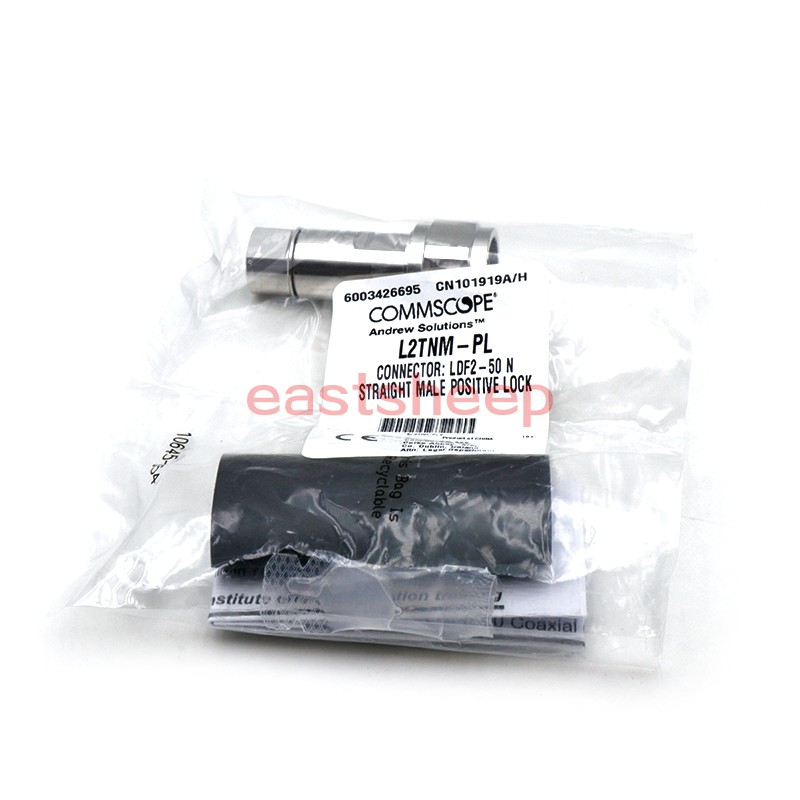

Andrew 3/8 обычная кабельная головка N-типа L2TNM-PL 3/8 Обычная мужская головка N-типа
Цена: 3 571руб. (¥169)
Артикул: 22870068058
Доставка по Китаю (НЕ включена в цену):
486 руб. (¥23)
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товараПродавец:东方旭普数码专营店
Рейтинг:
Всего отзывов:0
Положительных:0
Добавить в корзину
Другие товары этого продавца
¥110023 023руб.
¥12254руб.
¥4.8102руб.
¥8170руб.

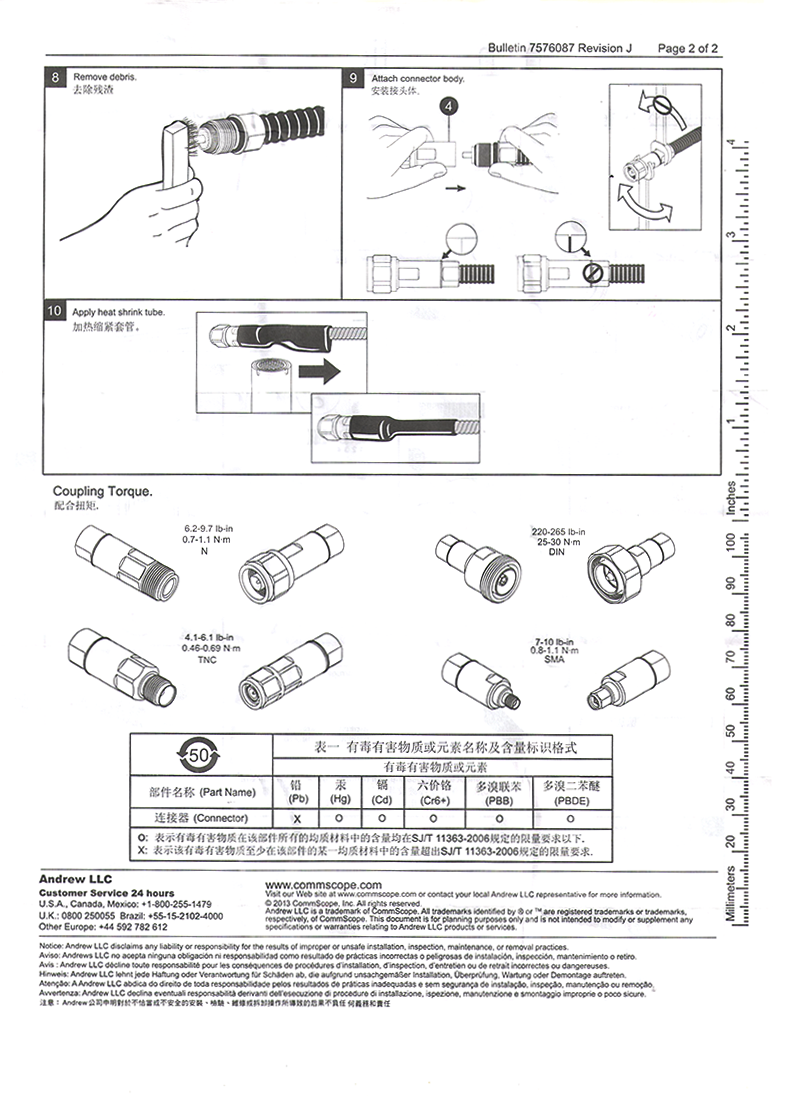

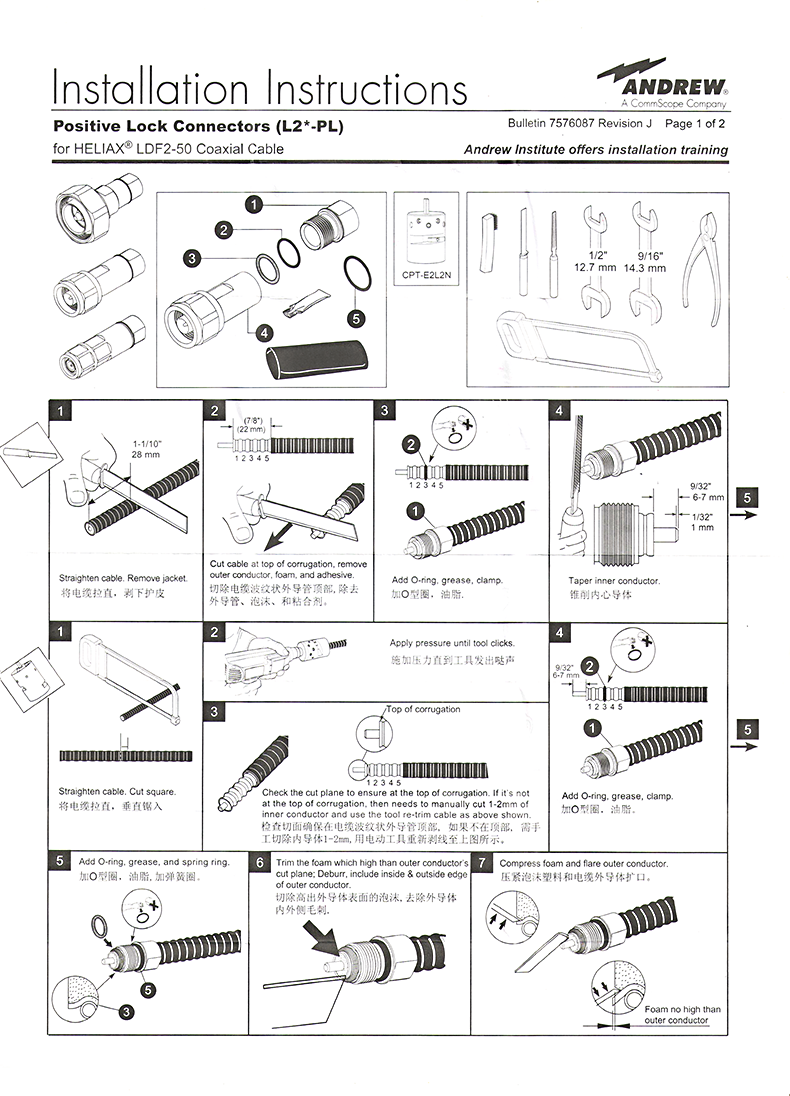

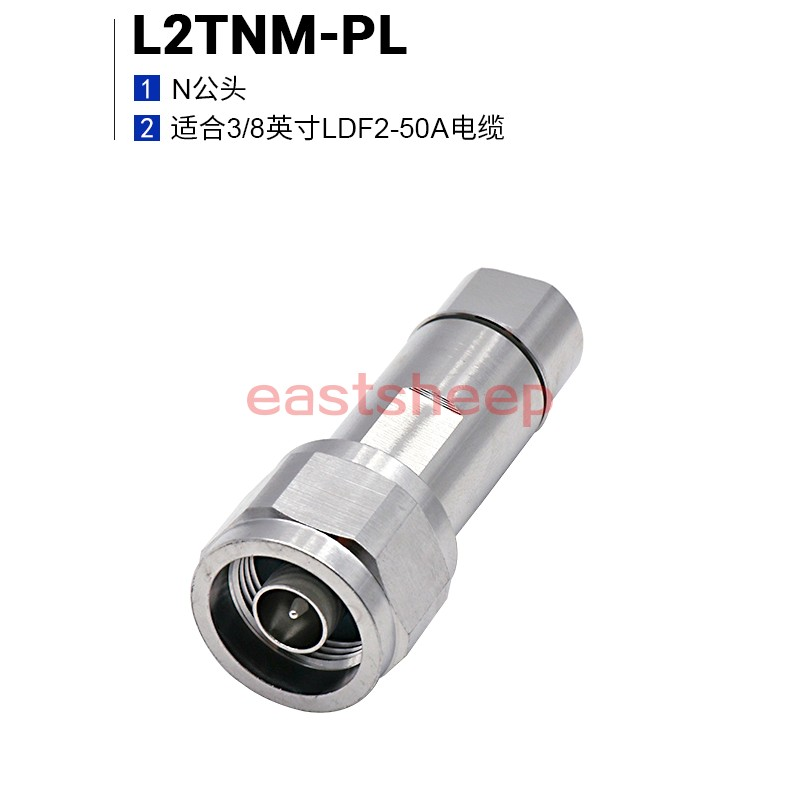

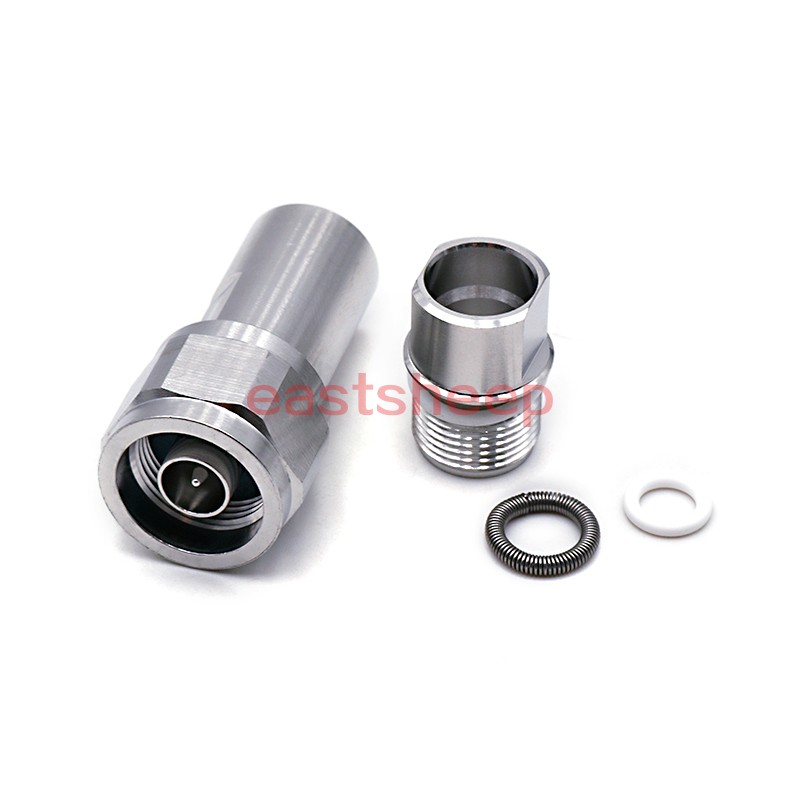

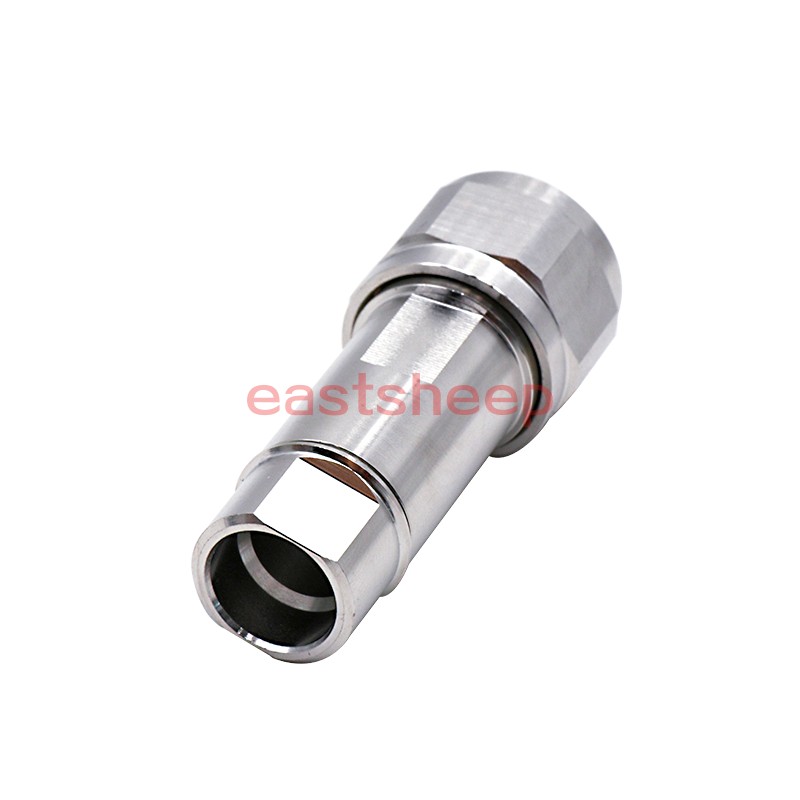

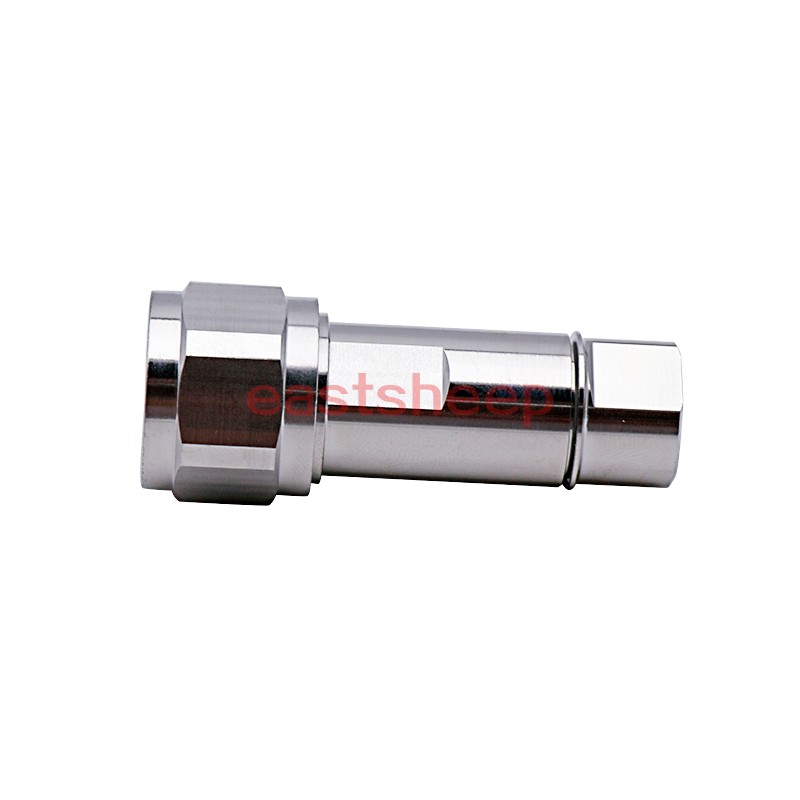

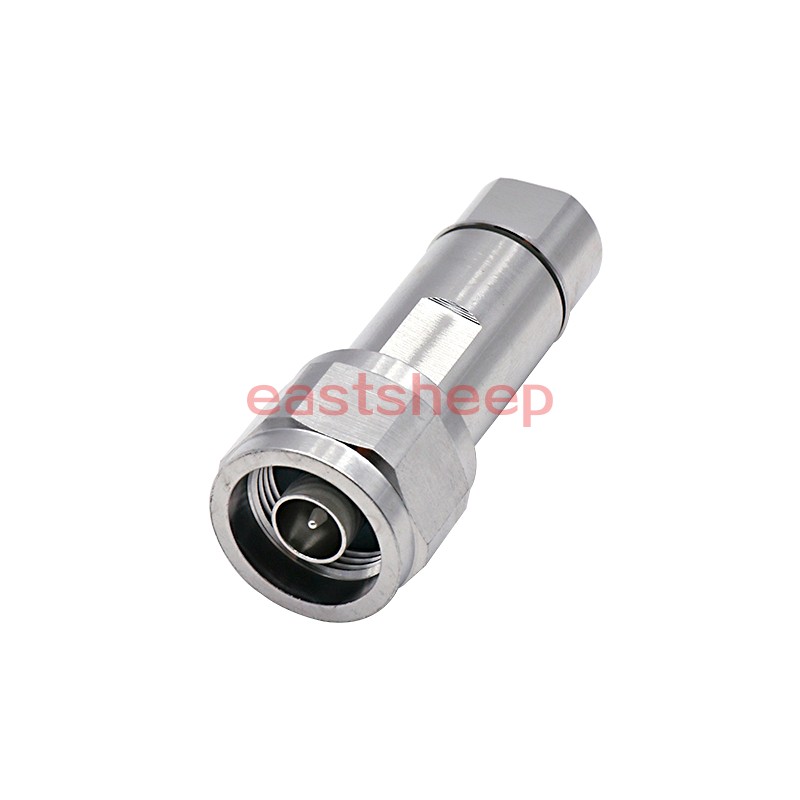

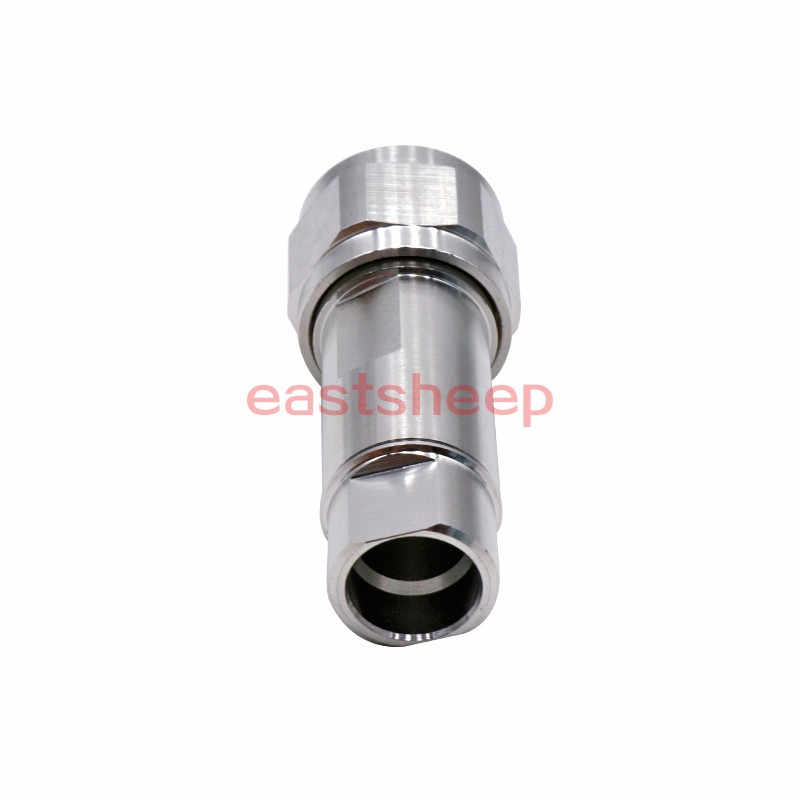

L2TNM-PL
Самский положительный блокировка типа N для 3/8 в кабеле LDF2-50

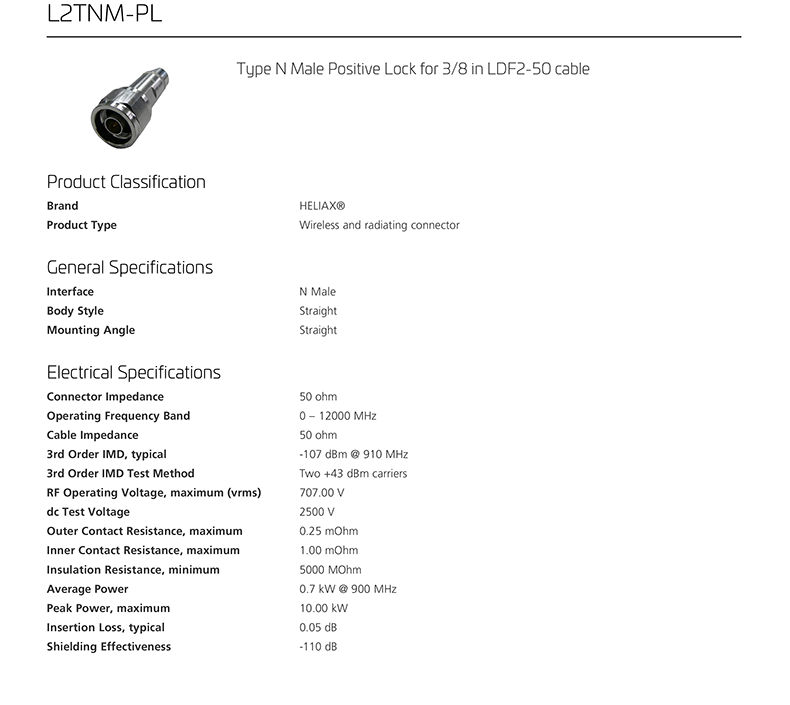

| General Specifications | |
| Interface | N Male |
| Body Style | Straight |
| Brand | HELIAX® |
| Mounting Angle | Straight |
| Electrical Specifications | |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0– 12000 MHz |
| Cable Impedance | 50 ohm |
| 3rd Order IMD, typical | -107 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| RF Operating Voltage, maximum (vrms) | 707.00 V |
| dc Test Voltage | 2500 V |
| Outer Contact Resistance, maximum | 0.25 mOhm |
| Inner Contact Resistance, maximum | 1.00 mOhm |
| Insulation Resistance, minimum | 5000 MOhm |
| Average Power | 0.7 kW @ 900 MHz |
| Peak Power, maximum | 10.00 kW |
| Insertion Loss, typical | 0.05 dB |
| Shielding Effectiveness | -110 dB |

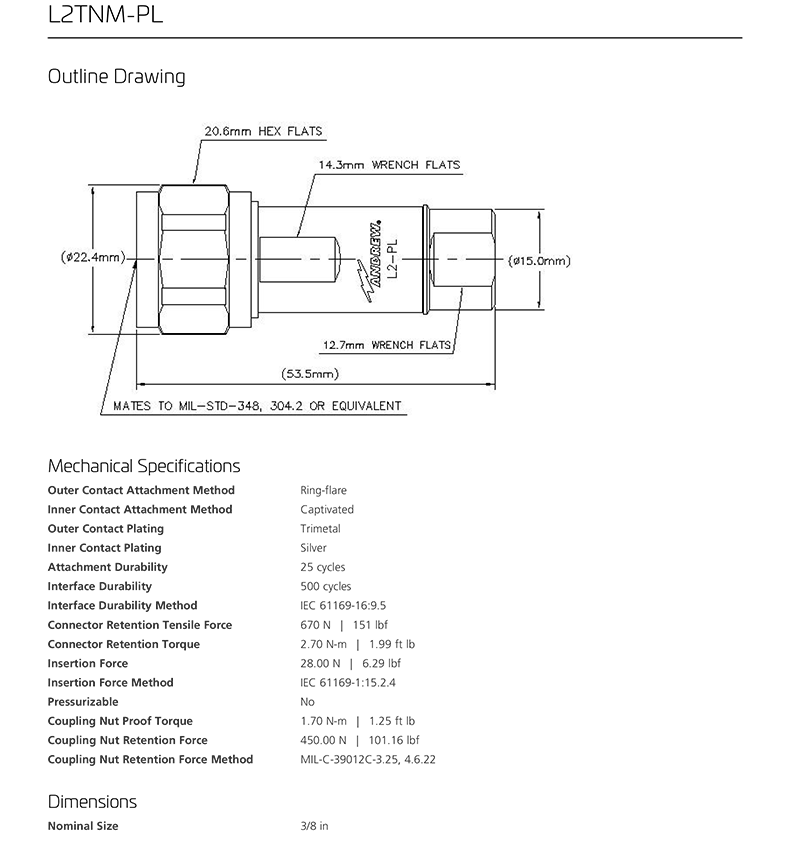

| Outline Drawing | |
| Mechanical Specifications | |
| Outer Contact Attachment Method | Ring-flare |
| Inner Contact Attachment Method | Captivated |
| Outer Contact Plating | Trimetal |
| Inner Contact Plating | Silver |
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Connector Retention Tensile Force | 670 N | 151 lbf |
| Connector Retention Torque | 2.70 N-m | 1.99 ft lb |
| Insertion Force | 28.00 N | 6.29 lbf |
| Insertion Force Method | IEC 61169-1:15.2.4 |
| Pressurizable | No |
| Coupling Nut Proof Torque | 1.70 N-m | 1.25 ft lb |
| Coupling Nut Retention Force | 450.00 N | 101.16 lbf |
| Coupling Nut Retention Force Method | MIL-C-39012C-3.25, 4.6.22 |

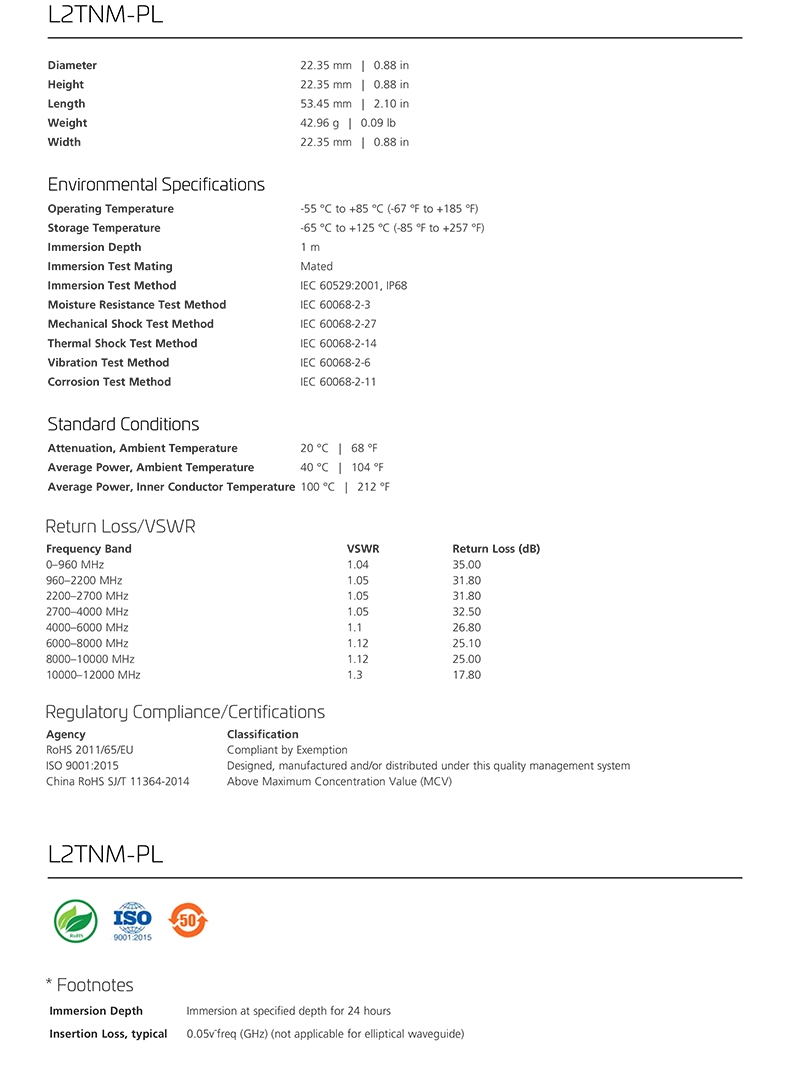

| Dimensions | |
| Nominal Size | 3/8 in |
| Diameter | 22.35 mm | 0.88 in |
| Height | 22.35 mm | 0.88 in |
| Length | 53.45 mm | 2.10 in |
| Weight | 42.96 g | 0.09 lb |
| Width | 22.35 mm | 0.88 in |
| Environmental Specifications | |
| Operating Temperature | -55°C to +85°C (-67°F to +185°F) |
| Storage Temperature | -65°C to +125°C (-85°F to +257°F) |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Corrosion Test Method | IEC 60068-2-11 |
| Standard Conditions | |
| Attenuation, Ambient Temperature | 20°C | 68°F |
| Average Power, Ambient Temperature | 40°C | 104°F |
| Средняя мощность, внутренняя температура проводника | 100°C | 212°F |
Return Loss/VSWR
| Frequency Band | VSWR | Return Loss (dB) |
| 0–960 MHz | 1.04 | 35.00 |
| 960–2200 MHz | 1.05 | 31.80 |
| 2200–2700 MHz | 1.05 | 31.80 |
| 2700–4000 MHz | 1.05 | 32.50 |
| 4000–6000 MHz | 1.1 | 26.80 |
| 6000–8000 MHz | 1.12 | 25.10 |
| 8000–10000 MHz | 1.12 | 25.00 |
| 10000–12000 MHz | 1.3 | 17.80 |
