[美国MIT PPMFX（四级）9uf、 200V音频电容]

Цена: 3 149руб.    (¥149)
Артикул: 549455476686
Доставка по Китаю (НЕ включена в цену):
212 руб. (¥10)

Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.

Этот товар на Таобао Описание товара
Продавец:wjg6632
Рейтинг:
Всего отзывов:0
Положительных:0
Добавить в корзину
Другие товары этого продавца
¥3407 161руб.
¥70014 708руб.
¥2755 811руб.
¥56011 766руб.
  • Информация о товаре
  • Фотографии

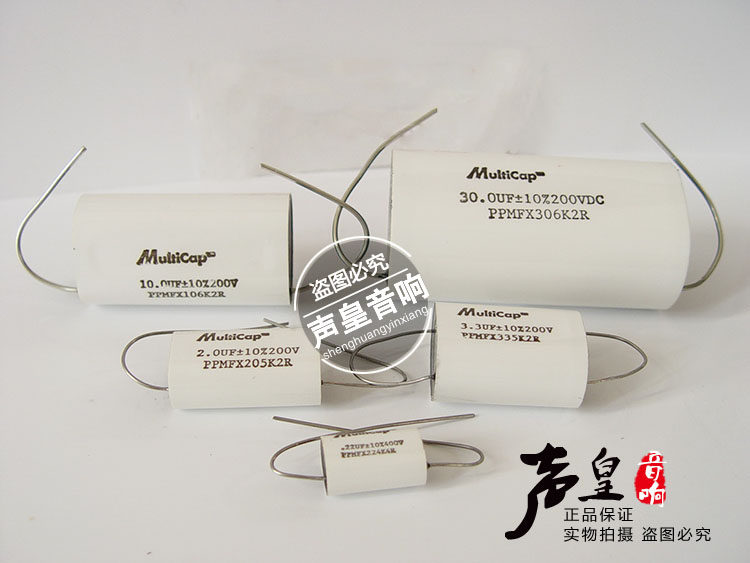

MultiCapTM[- Metalized Polypropylene Multiple-Section Capacitor]

The PPMFX series of the MultiCap[TM reduces typical capacitor loss factors with a patented design that winds capacitors coaxially one upon the other, into a single, self-bypassed unit. Since each section is parallel, the inductance of the overall capacitor is reduced by the number of sections used - typically 10. Inductance characteristics never exceed those of a piece of lead wire the same length as the capacitor]&[#39;s body; measured ESR values are 5 to 10 times lower than conventional designs (see Figure 1). The PPMFX MultiCapTM is recommended for lower current applications. With its overall reduction of parasitics, this series is ideal for use wherever low ESR, low DF, high resonant frequency, high performance, and small size are important, and wherever metalized capacitors are in use.]







Capacitance Values:

[.001 to 30.0 uf. Special values on request.]

Tolerances:

+/- 10%. Special tolerances on request.

Working Voltages:

200, 400, 600; 100& 800 on request.

Test Volts:

2.0 x rated voltage for one minute.

Dissipation Factor:

<[ 0.05% 1.0 - 10.0 uf @ 1kHz @ 25 degress C]
< 0.05%> 10.0 uf @ 120 Hz @ 25 degress C
<[ 0.03% .1 - 1.0 uf @ 1kHz @ 25 degress C]
<[ 0.02% .001 - .1 uf @ 1kHz @ 25 degress C]

Insulation Resistance:

>300,000 megohm/ufd

Operating Temperature Range:

- 55 to 105 degress C

Temperature Coefficient:

-150 PPM/degree C

Life Tests:

[Rated voltage @ 85 degrees C for 1000 hrs]

Vibration:

Will meet Mil-C-19978B

Lead Material:

[Tin-plated copper. Others available on request.]
