HDMI передача моделирования 5.1 канал цифровой конвертер ротора HDMI Декодер разделиться Dolby 4K
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
- Информация о товаре
- Фотографии

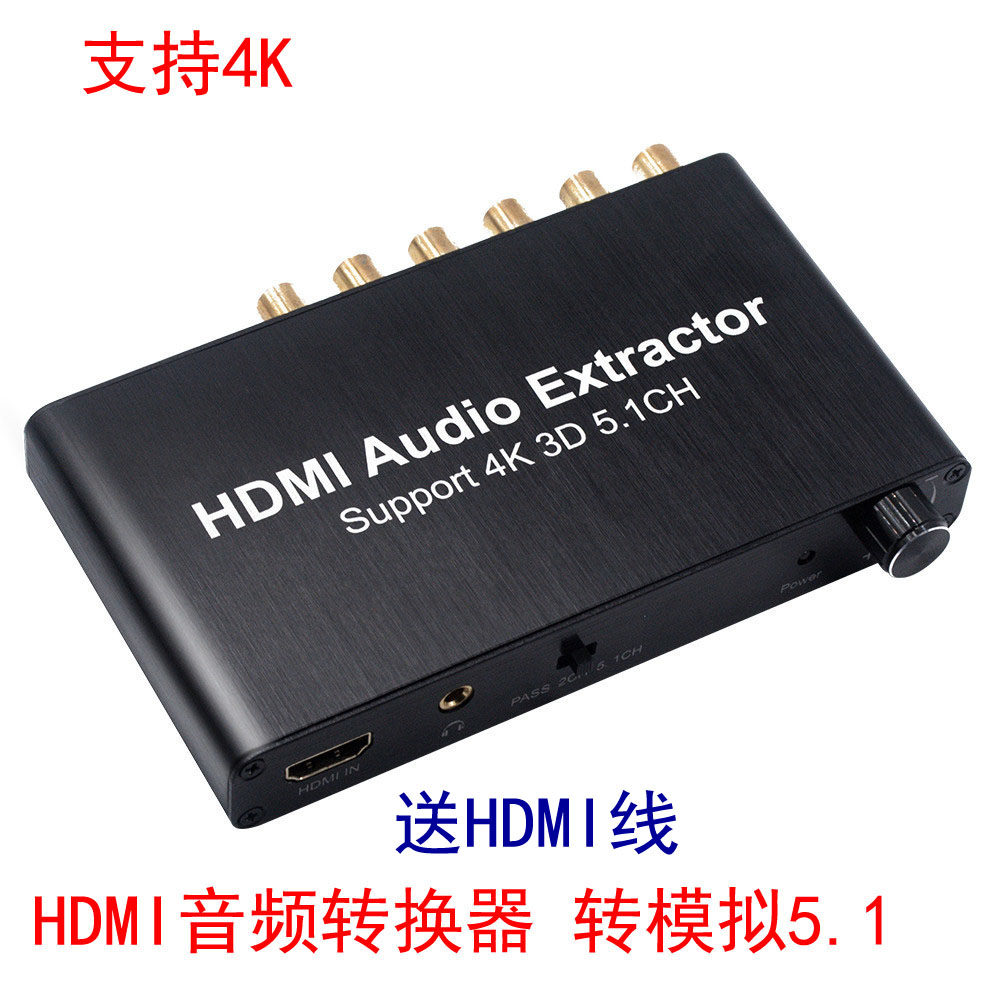

HDMI AudioExtractor
Support5.1CH
4K 3D
User Manual
Thank you for choosing our products.We
focus on producing professional,high-
quality,cost-effective high-tech products.
Let you easily enjoy high-definition
digital life brought by technology.
For the optimum performance and
safety,please read these instructions
carefully before connecting,operating or
adjusting the product. And please keep this
manual for future reference.
ВВЕДЕНИЕ:
This audio decoder can auto convert HDMI
input to 5.1 channel analog audio output,
and support decoding Dolby AC-3/DTS(include
5.1 RAW digital audio streaming). So it is
widely used in families, schools, squares,
concert halls, cinemas and other public
places to enjoy the shock effect of DTS or
Dolby.
Features:
l Build-in high performance RTOS operating
system and audio decoder chip; support
DTS/AC-3.
l Super fast start time about 3 seconds.
l Input: HDMI
l Output:HDMI;SW,CEN,SR,SL,FR,FL; 3.5mm
Headphone Port
l HDMI Input Resolution: Up to
3840x2160@30Hz;4096x2160@30Hz.
l HDMI to achieve the synchronization of
audio signal decode. There are
PASS/2.0CH/5.1CH three kinds of audio mode
options.
l Auto decode AC-3/DTS (LPCM/PCM/RAW) input
signal without any action.
l High compatibility: Support network
player, HDTV, Blu-rayDVD, DVD, PS3, Xbox
360, DM500S, DM800HD, etc.
l Small Size and Metal case, Anti-
interference.
l Adopt 6ch RCA/3.5mmHeadphone port
output,convenient and efficient in use.
l Supports 6CH volume synchronous
adjustment.
Спецификация:
HDCP
Version....................................
.......HDCP1.4
HDMI
Version....................................
.......HDMI1.4b
HDMIResolution.............................
..2160p@30Hz/
1080p@50/60Hz/1080i/720p/1576i/480p/480i
SupportVideoColorFormat......24bits/deep
color 30bit,36bit
AudioOutput....................2CH/5.1CH
Analog Audio
MaxBandwidth...............................
............340MHz
MaxBaudRate................................
.........10.2Gbps
Input/ Output TMDS signal.....0.5-1.5Volts
p-p(TTL)
Input/ Output DDC
signal.................5Volts p-p(TTL)
InputCableDistance.........................
<=7m AWG26 standard cable HDMI
OutputCableDistance......................<=
8m AWG26 standard cable HDMI
SupportAudioFormat...MP3,AC3,DTS,WAV,WMA,
AAC,ALAC,FLAC,APE,OGG,M4A
Signal Noise
Ratio......................................
....120db
Stereo
Isolation..................................
... 80db (1 кГц)
Channel
Unbalance..................................
..........0db
Sampling
Rate......................................3
2~192 KHz
Bit
Rate.......................................
..............16~24 Bit
Response Frequency............20Hz~20KHz
+/-0.7db
THD...............................20Hz~20KH
z 0.25-0.065%
THD
+N.........................................
........1KHz 0.15%
Shell Dimension...................138.2 x
97.5 x 21.2mm
Weight.....................................
.........................238g
Max Power
Current....................................
...420mA
Power adapter format........input:AC
(50/60Hz)100V-
240V;Output:DC5V/2A
Working
Temperature................................
.... 0-70 ℃
Working Humidity.....10%-80%RH(non-
condensing)
Storage
Temperature................................
..- 10-80 ℃
Storage Humidity.....5% -90% RH(non-
condensing)
Package Contents:
Decoder....................................
......................1PCS
User
Manual.....................................
..............1PCS
5V/1A Power
Adapter....................................
..1PCS

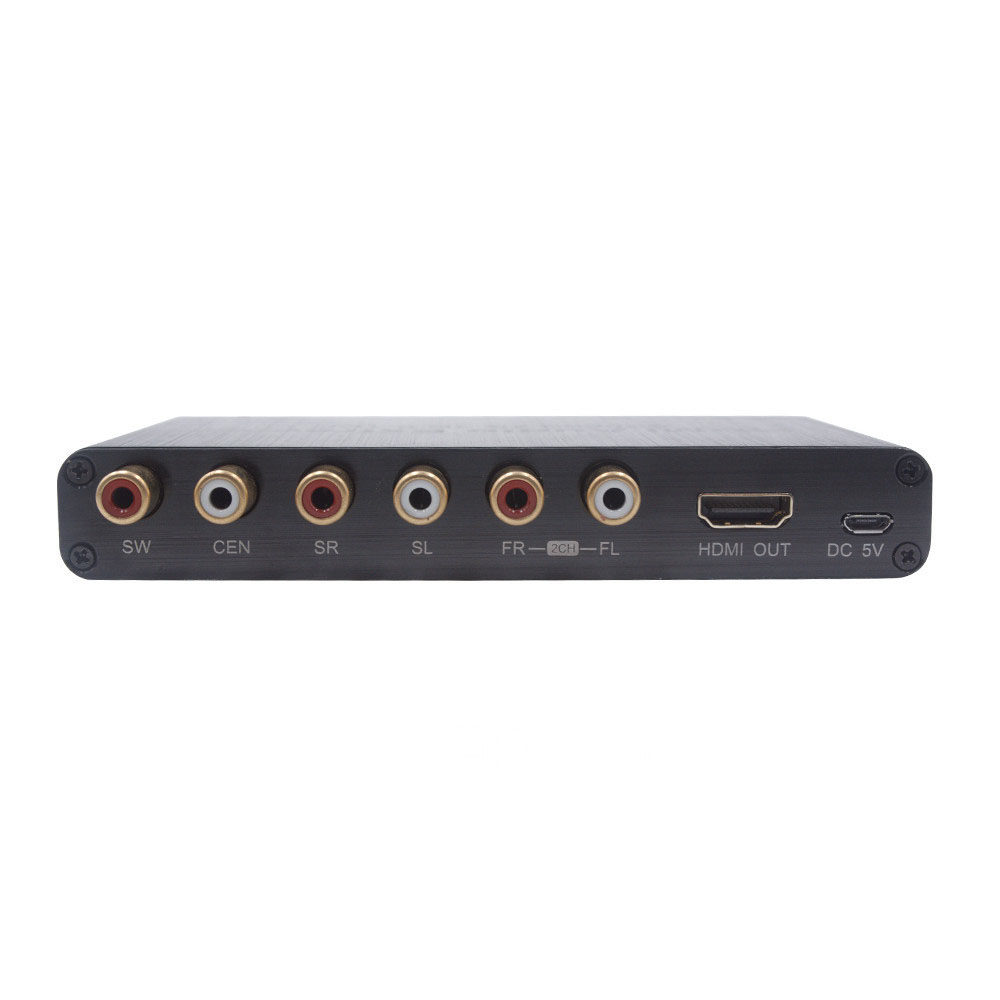

Diagram of Interfaces:
①SW: Heavy bass output port
②cen: Middle output port
③ SR/SL: Поставьте положение влево/правый вывод
port
④FR/FL: передний левый/правый выходной порт
⑤ HDMI OUT: выходной порт HDMI
⑥ DC/5V: порт питания

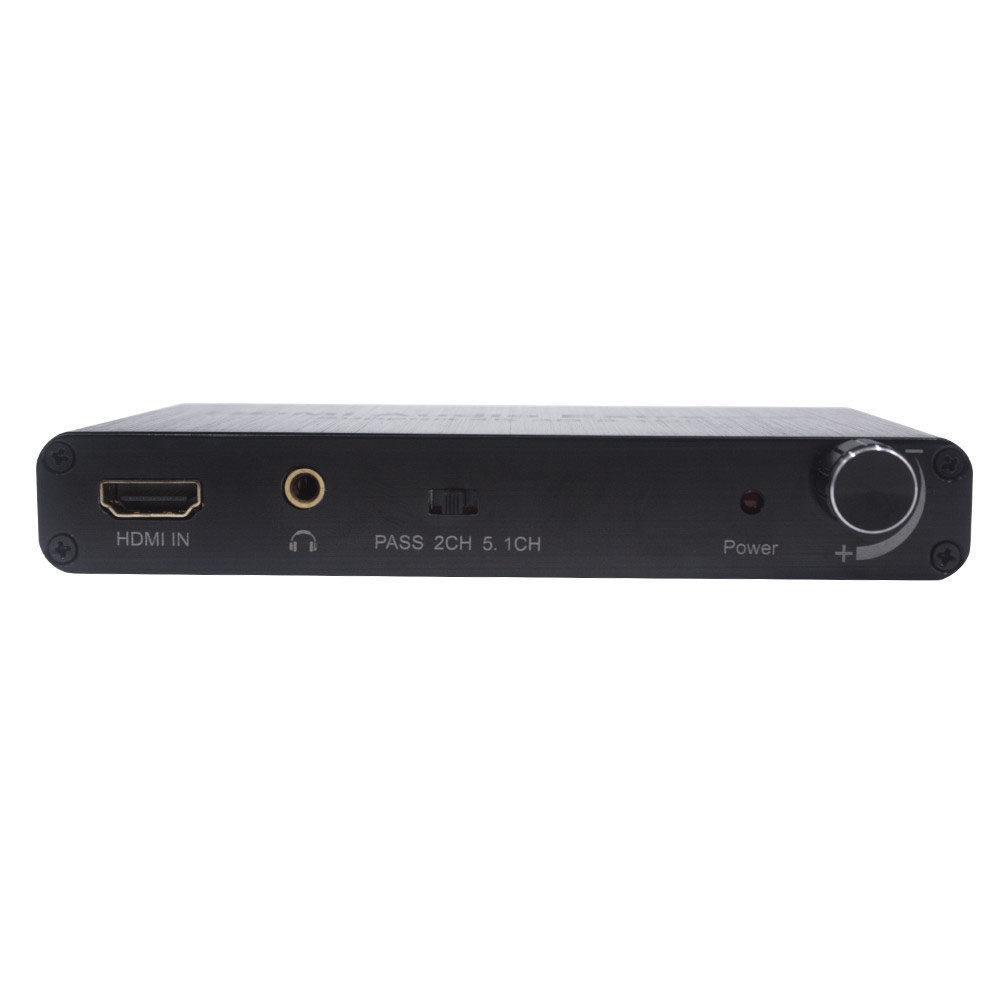

① HDMI в: HDMI input port
② Седл: 3,5 мм аналоговый аудио выходной порт
③ Pass/2ch/5.1ch: аудио
PASS/2.0/5.1 channel switch button
④ Мощность: индикатор питания
⑤ ручка: регулировка громкости
Connection Diagram:
In the 2CH Mode
In the 5.1CH Mode
Соединение и операция:
1. Use the HDMI cable to connect the HDMI
input interface to the HD source device.
(such as DVD,games console,computer etc.)
2. Use the HDMI cable to connect the HDMI
output interface to the HD display.(such as
HD TV, monitor etc.)
3. Use the audio cable to connect the SW/
CEN/ SR/ SL/ FR/ FL port to the Audio
amplifier.
4. Connect the Headphone port to the
headphone.
5.Connect the Power Adapter to the Power
Interface of the decoder,the power
indicator will light when power on.
6.Switch Pass/2CH/5.1CH key when you need
to output Pass/2.0/5.1 sound. when you
select 2ch sound output mode,ONLY FR/FL
port make a sound. Other interface have no
sound.
Примечание:
Please use the machine as the instruction
listed to keep the long lifetime of it.
1.Please do not expose this unit to the
damp, high-temperature, dusty, erosive, or
oxidative environment.
2.All parts will be free from the strong
shake, hit, fall.
3.Please do not touch the power adapter
plug with wet hands.
4.Please hold the plug when unplugging. Do
not pull the power cable directly.
5.Please turn the unit off when it is not
in use for a long period of time.
6.Please do not open the cover and do not
touch the inside parts.
7.Please use the original factory power
adapter.
