ПБО-3-С12-Б ПСК-С3-5 ПСК-С3-9 ПСК-С3-3 РАК04-15СГБ
Цена: 1 653-1 664руб. (¥78.2)
Артикул: 742962469822
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товараПродавец:中国元器件
Рейтинг:
Всего отзывов:0
Положительных:0
Выберите вариацию / цвет
Добавить в корзину
Другие товары этого продавца
¥362775 551руб.
¥16524344 195руб.
¥4892101 901руб.
¥1012.121 184руб.
| Цвет: | PBO-3-S12-B, PSK-S3-5, PSK-S3-9, PSK-S3-3, RAC04-15SGB |
Модель: ПБО-3-С12-Б
| Manufacturer | CUI Inc. |
| Series | PBO-3 (3W) |
| Part Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA |
| Power (Watts) | 3W |
| Applications | ITE (Commercial) |
| Features | DC Input Capable |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 77% |
| Mounting Type | Through Hole |
| Package / Case | 12-SIP Module, 6 Leads |
| Size / Dimension | 1.38" L x 0.71" W x 0.43" H (35.0mm x 18.0mm x 11.0mm) |
| Line Regulation | ±1.5% |
| Load Regulation | ±2.5% |
| Approvals | CE, cURus |
| Weight | 0.013 lb (5.9g) |

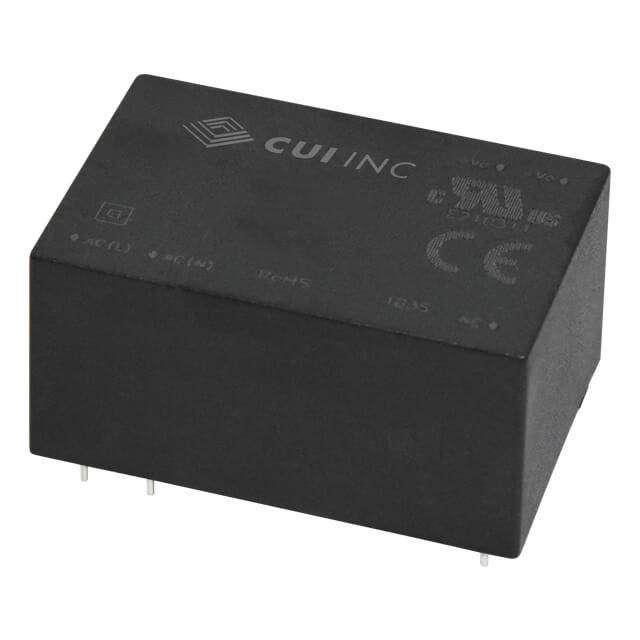

Модель: ПСК-С3-5
| Manufacturer | CUI Inc. |
| Series | PSK-S3 (3W) |
| Part Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 100 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 600mA |
| Power (Watts) | 3W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Efficiency | 74% |
| Mounting Type | Through Hole |
| Package / Case | 26-DIP Module, 5 Leads |
| Size / Dimension | 1.46" L x 0.96" W x 0.71" H (37.0mm x 24.5mm x 18.0mm) |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Approvals | CE, cURus |
Модель: ПСК-С3-9
| Manufacturer | CUI Inc. |
| Series | PSK-S3 (3W) |
| Part Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 100 ~ 370 VDC |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 330mA |
| Power (Watts) | 3W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Efficiency | 75% |
| Mounting Type | Through Hole |
| Package / Case | 26-DIP Module, 5 Leads |
| Size / Dimension | 1.46" L x 0.96" W x 0.71" H (37.0mm x 24.5mm x 18.0mm) |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Approvals | CE, cURus |
Модель: ПСК-С3-3
| Manufacturer | CUI Inc. |
| Series | PSK-S3 (3W) |
| Part Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 100 ~ 370 VDC |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 700mA |
| Power (Watts) | 2.3W |
| Applications | ITE (Commercial) |
| Features | Universal Input |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Efficiency | 66% |
| Mounting Type | Through Hole |
| Package / Case | 26-DIP Module, 5 Leads |
| Size / Dimension | 1.46" L x 0.96" W x 0.71" H (37.0mm x 24.5mm x 18.0mm) |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Approvals | CE, cURus |

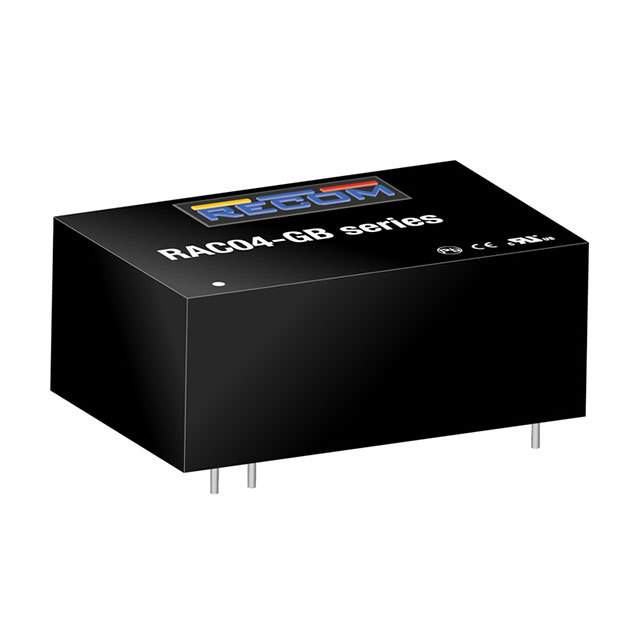

Модель: RAC04-15SGB
| Manufacturer | Recom Power |
| Series | POWERLINE RAC04-GB (4W) |
| Part Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 305 VAC |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 270mA |
| Power (Watts) | 4W |
| Applications | Household Appliances, ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 78% |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 5 Leads |
| Size / Dimension | 1.46" L x 0.94" W x 0.59" H (37.0mm x 24.0mm x 15.0mm) |
| Line Regulation | ±0.5% |
| Load Regulation | ±0.5% |
| Approvals | CE, cURus |
| Weight | 0.044 lb (19.96g) |
