D4B-4A71N-NPT D4NS-9EF D4C-4420 T5009-021F1M WLNJG1N
Цена: 19 545-19 577руб. (¥930.24)
Артикул: 598923586707
Доставка по Китаю (НЕ включена в цену):
13993 руб. (¥666)
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товараПродавец:中国元器件
Рейтинг:
Всего отзывов:0
Положительных:0
Выберите вариацию / цвет
Добавить в корзину
Другие товары этого продавца
¥362775 551руб.
¥16524344 195руб.
¥4892101 901руб.
¥1012.121 184руб.
| Цвет: | D4B-4A71N-NPT, D4NS-9EF, D4C-4420, T5009-021F1M, WLNJG1N |

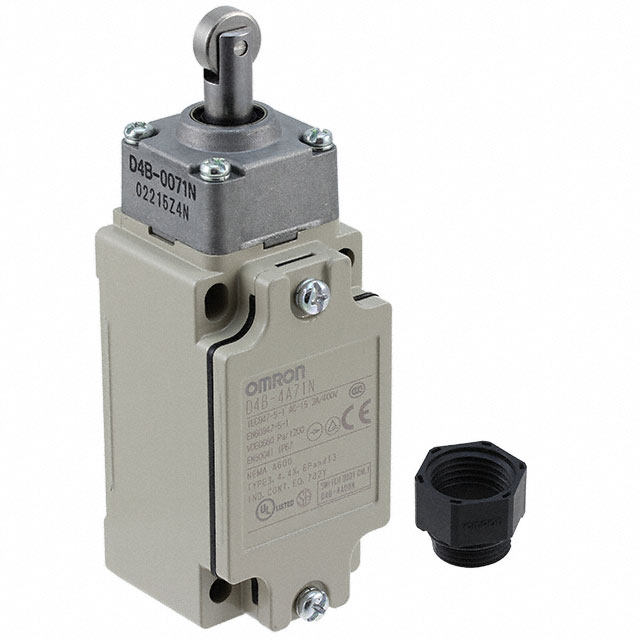

Модель: D4B-4A71N-NPT
| Manufacturer | Omron Automation and Safety |
| Series | D4B-N |
| Packaging | Bulk |
| Part Status | Active |
| Circuit | DPST-NC |
| Switch Function | On-Mom |
| Current Rating (Amps) | 10A (AC), 6A (DC) |
| Voltage Rating - AC | 120V |
| Voltage Rating - DC | 30V |
| Actuator Type | Roller Plunger |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Force | 1900gf |
| Release Force | 200gf |
| Pretravel | 0.080" (2.0mm) |
| Differential Travel | - |
| Overtravel | 0.197" (5.0mm) |
| Operating Temperature | -40°C ~ 80°C |
| Operating Position | 1.890" (48.0mm) |
| Electrical Life | 500,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |
Модель: D4NS-9EF
| Manufacturer | Omron Automation and Safety |
| Series | D4NS |
| Packaging | Bulk |
| Part Status | Active |
| Circuit | DPST-NO/NC (MBB) |
| Switch Function | On-Off, Off-On |
| Current Rating (Amps) | 3A (AC) |
| Voltage Rating - AC | 240V |
| Actuator Type | Panel Disconnect |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Force | 3059gf |
| Release Force | 1530gf |
| Pretravel | 0.248" (6.3mm) |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -30°C ~ 70°C |
| Operating Position | - |
| Electrical Life | 500,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
Модель: D4C-4420
| Manufacturer | Omron Automation and Safety |
| Series | D4C |
| Packaging | Bulk |
| Part Status | Active |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | 100mA (AC/DC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Actuator Type | Side Rotary, Roller |
| Mounting Type | Chassis Mount |
| Termination Style | Cable Leads |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Cable Length 3m |
| Operating Force | 580gf |
| Release Force | 150gf |
| Pretravel | 25° |
| Differential Travel | 3° |
| Overtravel | 40° |
| Operating Temperature | -10°C ~ 70°C |
| Operating Position | - |
| Electrical Life | 200,000 Cycles |
| Mechanical Life | 10,000,000 Cycles |

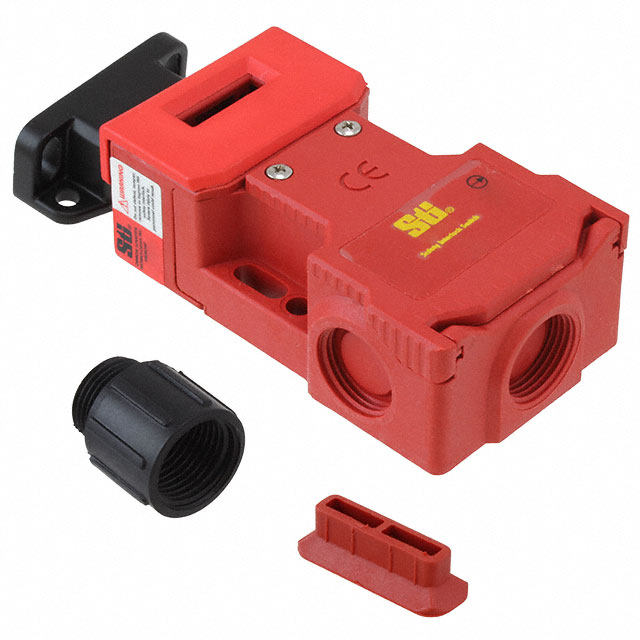

Модель: Т5009-021Ф1М
| Manufacturer | Omron Automation and Safety |
| Series | T5009 |
| Packaging | Bulk |
| Part Status | Active |
| Circuit | 3PST-2NC/1NO (BBM) |
| Switch Function | On-Off, Off-On |
| Current Rating (Amps) | 6A (AC), 2.5A (DC) |
| Voltage Rating - AC | 120V |
| Voltage Rating - DC | 24V |
| Actuator Type | Panel Disconnect |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Flex Actuator |
| Operating Force | 1224gf |
| Release Force | - |
| Pretravel | - |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -25°C ~ 80°C |
| Operating Position | - |
| Electrical Life | 1,000,000 Cycles |
| Mechanical Life | - |

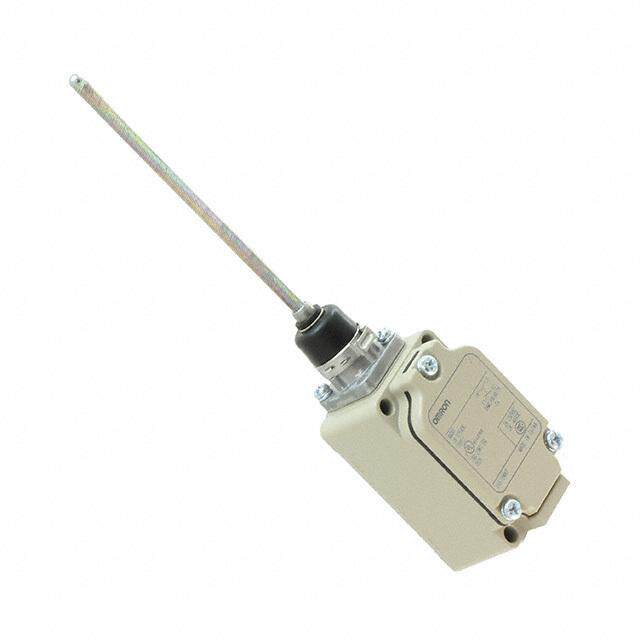

Модель: WLNJG1N
| Manufacturer | Omron Automation and Safety |
| Series | WL-N |
| Packaging | Bulk |
| Part Status | Active |
| Circuit | SPDT (DB/DM) |
| Switch Function | On-Mom |
| Current Rating (Amps) | 10A (AC), 6A (DC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Actuator Type | Spring, Coil |
| Mounting Type | Chassis Mount |
| Termination Style | Screw Terminal |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Force | 150gf |
| Release Force | - |
| Pretravel | 0.787" (20.0mm) |
| Differential Travel | - |
| Overtravel | - |
| Operating Temperature | -10°C ~ 80°C |
| Operating Position | - |
| Electrical Life | 750,000 Cycles |
| Mechanical Life | 15,000,000 Cycles |
