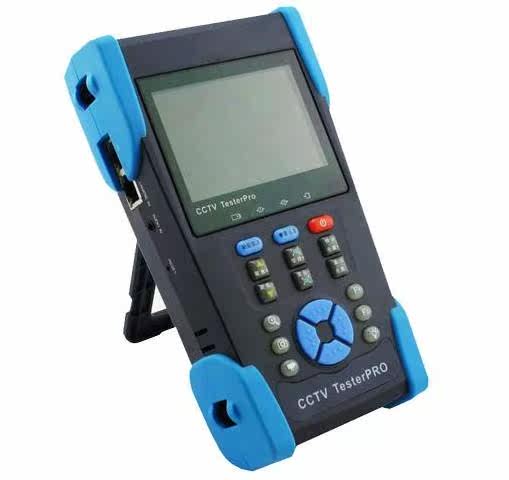

[3.5 inch CCTV camera tester monitor IP address scan POE]
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товара
Feature:
*3.5”TFT-LCD, 480(RGB)x320
*LED Lamp easy to operate at night
*4GB Micro SD Card inside
*User-defined shortcut keys(F1 and F2)
[*LCD screen brightness/contrast/color Saturation adjustable]
[*Automatically adapts and displays the video format of NTSC/PAL]
[*10xzoom,video image can be magnified to view the details, easy to use]
*Video record and playback
[*Snapshot and save the current image as JPG file in the SD card]
[*PING testing, test IP camera or other network devices]&[rsquo; ethernet port whether work normally, and the IP address whether right]
[*IP address scan, quickly search the IP address for the connected IP camera and other network devices]
[*POE voltage measurement, test the PoE switch]&[rsquo;s voltage to IP cameras, wireless AP device and other PD devices]
[*Device Port flicker,easy to find the connected PoE switch port by sending special signals, the connected PoE port will flicker at special frequency.]
[*Link monitor; check the setting IP address whether occupied.]
*TDR break point and short&[ndash; circuit measurement( BNC cable, network cable etc)--Only for T model(2601T).]
[*PTZ address scan, search up the ID of PTZ camera.]
[*Network cable and Telephone cable testing, display the sequence of connection and the NO]
of the LAN cable
[*Support RS232/RS485/RS422,Rate 600 - 115200bps adjustable]
[*Multi-protocol. Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D,SAMSUNG]
[*PTZ protocol analysis, control protocol command displays to check RS485 transmission]
&[nbsp;whether is normal, easy to find the fault device]
[* PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and]
sets and the preset position
*DC12V 1A power output for camera
[*Audio input test, test the audio signal from pickup devices]
*Visual fault locator , to test fiber’s bending and breakage
[*Lithium Ion Polymer Battery .The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and ] &[nbsp;environmental protection. It can last 11 hours for normal use after charging for 4 -5 hours]
Specification:
Model 2601
Video Test
Signal mode NTSC/PAL (Auto adapt)
Display &[nbsp;3.5 inch digital TFT-LCD ,480(RGB)x 320 resolution]
LCD adjustment &[nbsp;Brightness, Contrast, Saturation adjustable]
Video IN/OUT 1 channel BNC Input& 1 channel Output
Video Output Mode 1.0 Vp-p
Video Level test
Level test &[nbsp;Video signals measured in IRE or mV]
PTZ controller
Communication Support RS232 and RS485
PTZ Protocol &[nbsp;Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.]
Baud Rate &[nbsp;600,1200,2400,4800,9600,19200,57600,115200bps]
Video Signal Generation
Color bar generator &[nbsp;Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color )]
UTP CABLE TEST
UTP cable test &[nbsp;Test UTP cable connection status and display in the screen. Read the number of the test box.]
DC12V 1A power output
DC12V power output Output DC12V1A power for camera
Audio input test
Audio input test &[nbsp;test the pickup and other audio equipments on the front-end]
RS485 data analysis
Data Monitor &[nbsp;Captures and analyzes the command data from controlling device]
10 x zoom of image
Image 10x zoom &[nbsp;10x zoom image display and video out]
[Photograph,Video record, Record playback]
Photograph &[nbsp;snapshot and save the current image as JPG file]
Video record Video record and storage the file
Record playback &[nbsp;To view the storage file in the SD card]
Port flicker
&[nbsp;Find the connected POE port quickly.]
Port flicker
IP scan, Link monitor, PING test
IP scan &[nbsp;Find out the connected IP camera or the other network equipment IP address quickly.]
Link monitor &[nbsp;Check the IP address whether is occupied]
PING testing &[nbsp;Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address]
Cable scan
Cable scan &[nbsp;Search the cable by the audio signal]
POE tester
POE tester &[nbsp;Display the power supply voltage and cable connection states]
TDR Tester Only for T model
TDR Tester &[nbsp;breakpoint and short circuit measurement(BNC cable, telephone cable)]
POWER
Power Adapter DC 5V(1.5A)
Battery &[nbsp;Built-in 3.7V Lithium polymer battery ,3000mAh]
Rechargeable &[nbsp;After charging 3-4 hour, working time lasts 11 hours]
Low Consumption &[nbsp;Energy saving technology, the battery icon real-time display]
Parameter
Operation setting &[nbsp;English/Chinese and other languages OSD menu]
Auto off 5-60 (mins)
Keytone On/Off
General
Working Temperature -10 degree ---+50 degree
Working Humidity 30%-90%
Dimension /Weight 194mm x 112mm x 48mm / 540g
Package:
1x CCTV Tester PRO 2601-- 1pc
1x Power supply (5V 2A) -- 1pc
1x LAN Cable tester -- 1pc
1x Lithium Ion PolymerBattery -- - 1pc
1x BNC Cable - 1pc
1x Safety cord - 1pc
1x RS485 data cable - 1pc
1x Instruction Manual - 1pc
1x 4G SD card
