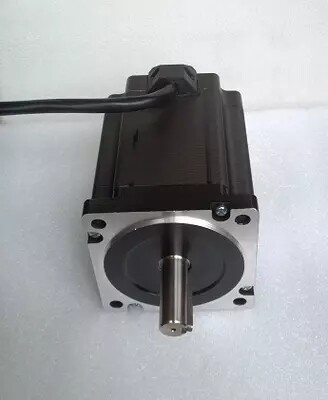

[85,86BYGH步进电机 86BYG250-80 86BYG450-80]
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товара

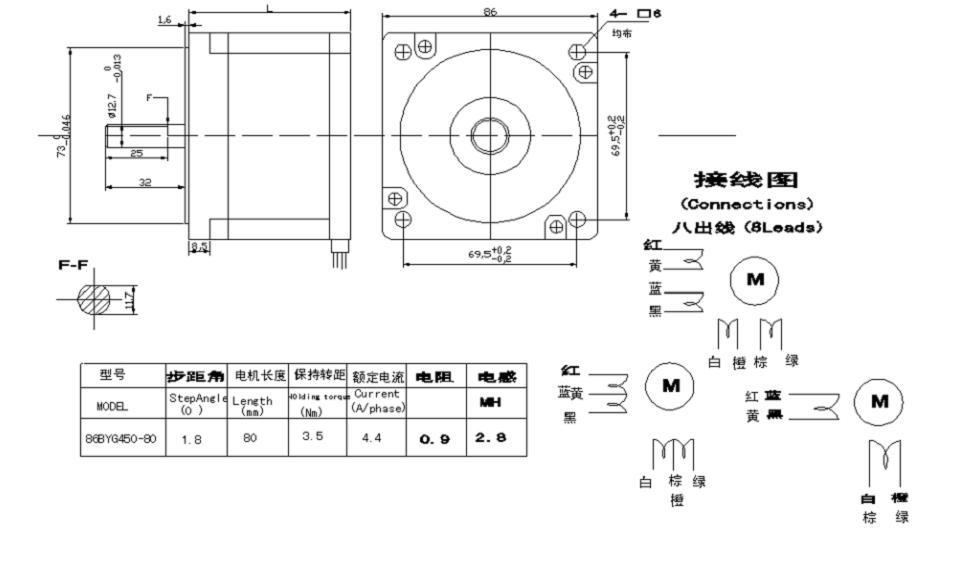

[【86BYG450-80】]
[步距角：0.9]°/1.8°
[相数：两相/四相]
[力矩：4N.m]
[电流：4.4A（6A）]
| [型号] | [电流] | [电阻] | [电感] | [最大静力矩] | [电机长度] |
| 86BYG250-80 | 4.4 | 1.5 | 8.1 | 4 | 80 |
| 86BYG450-80 | 4.4 | 0.9 | 2.6 | 3 | 80 |

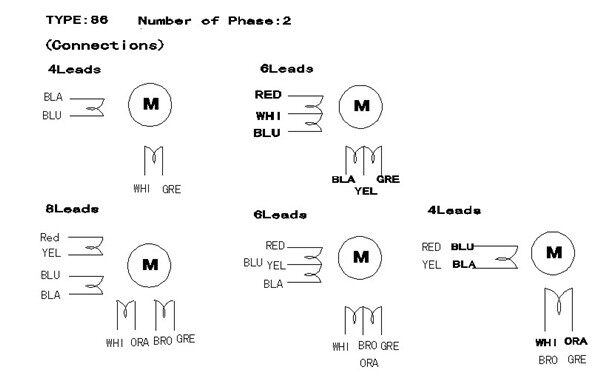

[引线：][4线/8线（可选择）]
[轴径：][12.7/14MM（可选择）]
[出轴：键槽/双扁丝/单扁丝]

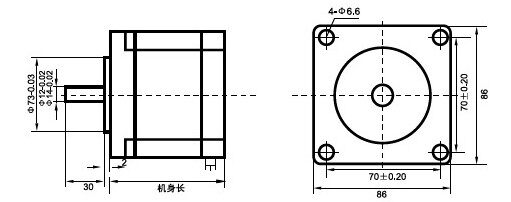

[法兰：73，（雕刻机为60mm）]
Step Angle ------------------- 1.8°±5°
[Temperature Rise ------------- 80℃max]
[Ambient Temperature -------- -20℃~+50℃]
Insulation Resistance--------- 100 MΩ Min. , 500VDC
[Dielectric Strength: ------------ 500VAC for 1minute]
Detailed Product Technical Date Sheet
[二相86BYG系列]
[型号] | [步距角 (]°) | [机身长度 (mm)] | [电流] (A) | [电阻 (]Ω) | [电感](mH) | [最大静力矩(N.m)] | [线数] (No.) |
0.9/1.8 | 65 | 4.4 | 1.3 | 3.2 | 2.8 | 4/6/8 | |
0.9/1.8 | 65 | 4 | 1.2 | 3.3 | 2 | 4/6/8 | |
0.9/1.8 | 65 | 4 | 0.8 | 3.35 | 2.8 | 4/6 | |
0.9/1.8 | 80 | 4 | 0.9 | 2.6 | 3 | 4/6/8 | |
0.9/1.8 | 98 | 4 | 0.9 | 7.4 | 7.5 | 4/6 | |
0.9/1.8 | 113 | 4 | 1 | 11 | 8.5 | 4/6 | |
0.9/1.8 | 118 | 4 | 1.3 | 6.4 | 8.1 | 4/6/8 | |
0.9/1.8 | 128 | 4.4 | 1.4 | 7.3 | 10 | 4/6/8 | |
0.9/1.8 | 150 | 4.4 | 1.7 | 9.7 | 12 | 4/6/8 | |
0.9/1.8 | 156 | 4.5 | 1.65 | 11.5 | 12.5 | 4/6/8 |
