L860-GL Mobile Unicom Telecom 4G модуль M.2 Интерфейс Cat16
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товара

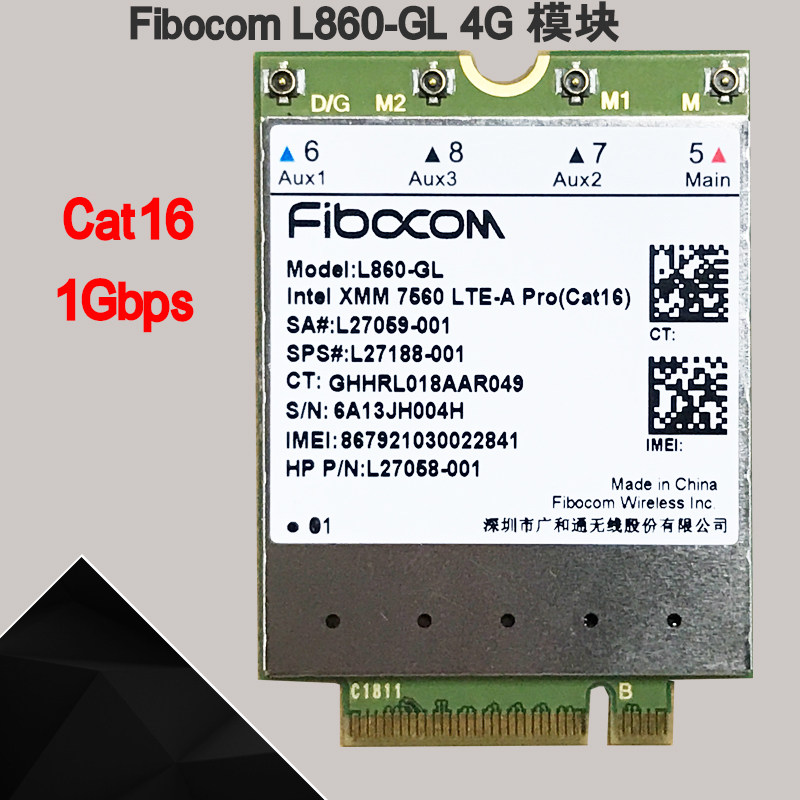

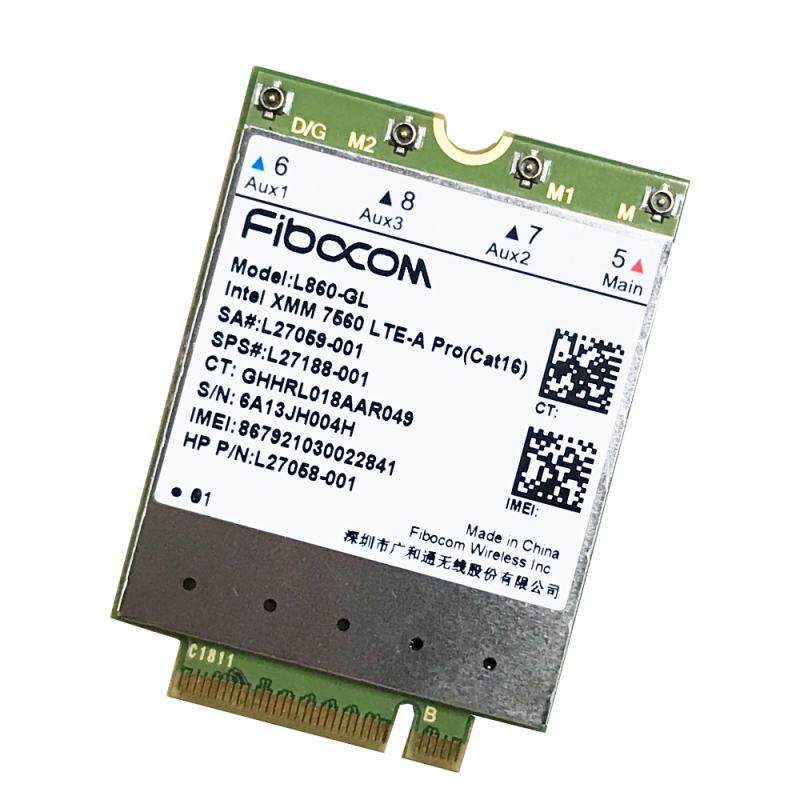

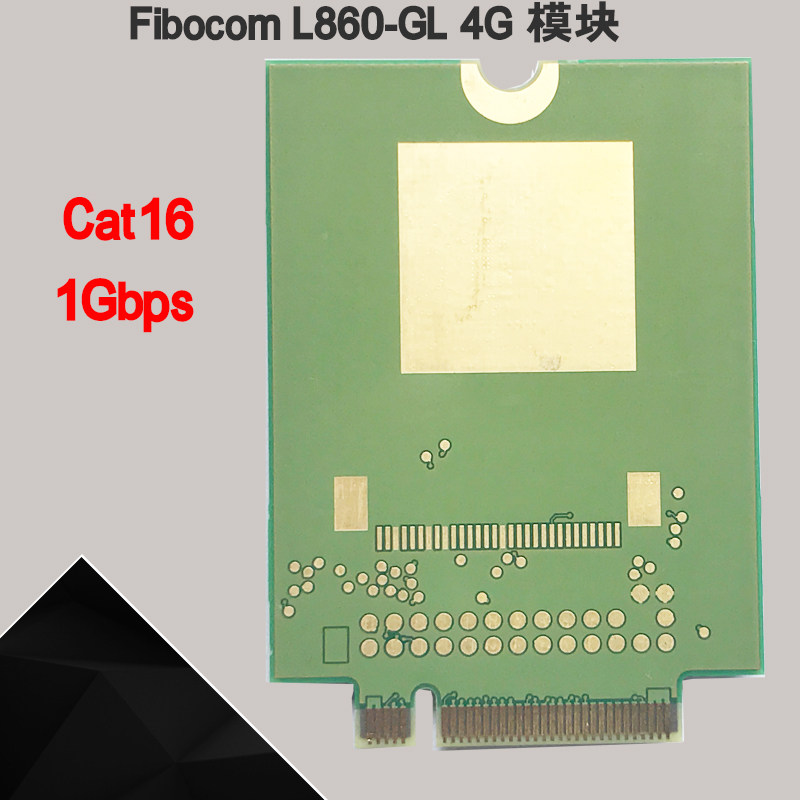

Fibocom L860-GL module Specifications:
* Chipset: Intel XMM7560
* Lte fdd ： Lte fdd: полоса 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 21, 25, 26, 28, 29, 30, 32, 66
* LTE TDD: B38/39/40/41/42
* UMTS: Band 1, 2, 4, 5, 8
* Form factor: M.2 package
* Dimensions: 30.0*42.0*2.3 mm
* DL 5CA on 4 bands, DL 256QAM support
* DL-MIMO: 2*2, 4*2, 4*4
* DL 4x4 MIMO: Band 1,2,3,4,7,30,40,41NB, 66
* LAA(Band 46)
* Integrated GNSS
* eSIM interface support
* Operating Voltage: 3.135V~4.4V, Typical 3.3V
* Operating Temperature: -10~+55°C
* Storage Temperature: -40~+85°C
* AT Command Set: 3GPP TS 27.007 and 27.005, proprietary FIBOCOM AT commands
* TX Power:
- FDD& TDD LTE: 23dBm
- WCDMA: 23.5dBm
* RX Sensitivity: FDD& TDD LTE: -98dBm~102dBm
* Data
- FDD& TDD LTE: 1Gbps DL(Cat 16), 150Mbps
- UL(Cat 13, 2CA on intra bands)
- UMTS/HSPA+: 42Mbps DL(Cat 24), 11.5Mbps
- UL(Cat 7)
* Interface
- USIM: 3V/1.8V
- PCIe
- BodySar
* Driver: Windows 10 and Linux
* Approval:
- CE / CCC / FCC / GCF / PTCRB etc. 100+ countries certification
- AT&T / Verizon /Sprint / DT / Telefonica / Vodafone /Swisscom / Docomo / KDDI / Softbank / Telstra /Optus
