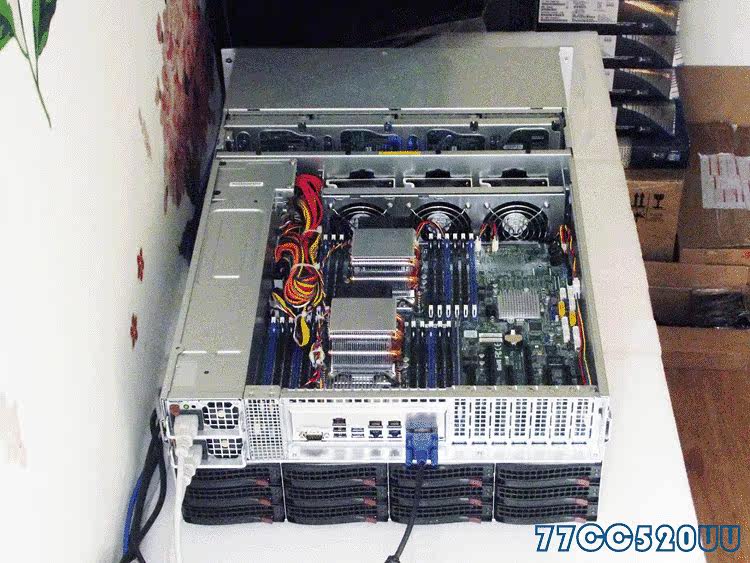

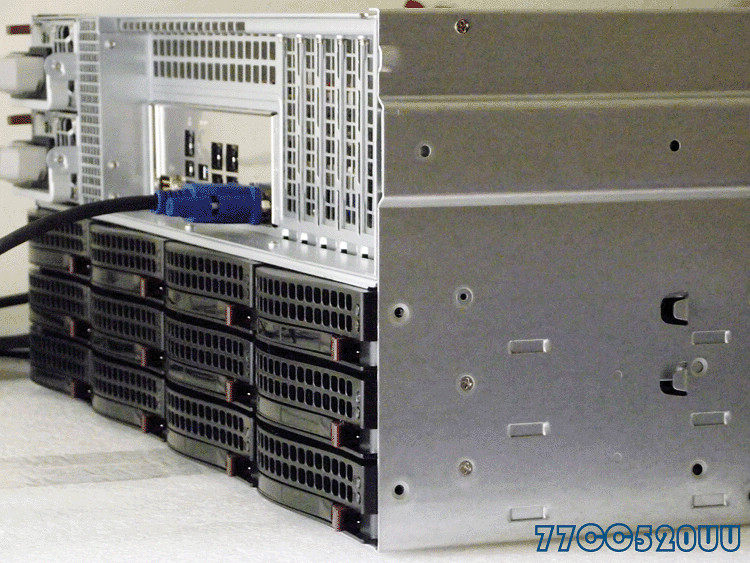

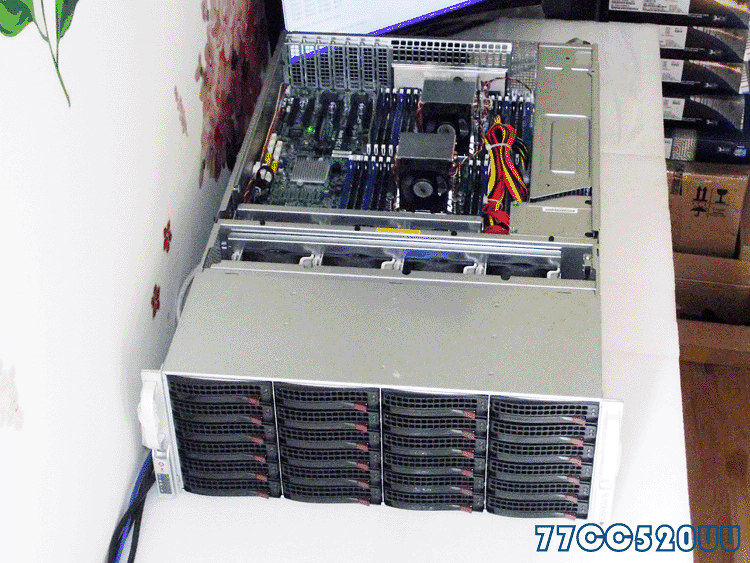

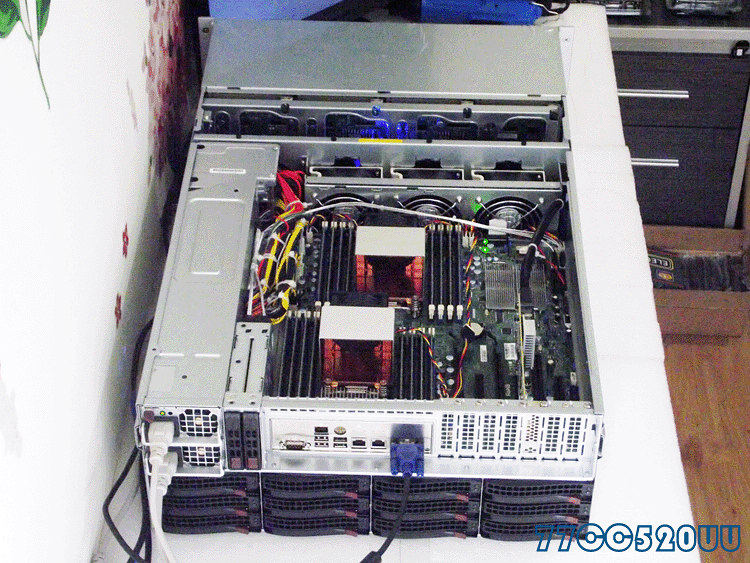

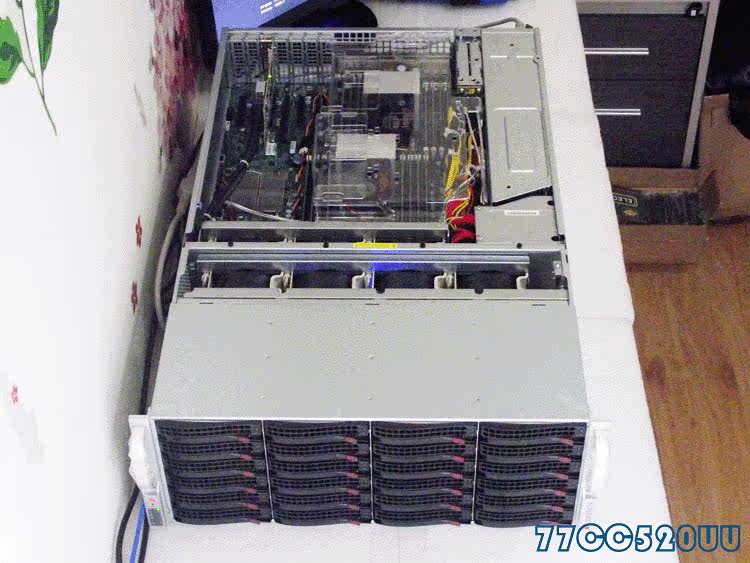

Ultra-Micro 4U Server Case SC847E16-R1400LPB 4U 36 Пластин плата за платформ для одноконтроли

Цена: 279 344руб.    (¥15800)
Артикул: 41338930662

Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.

Этот товар на Таобао Описание товара
Продавец:77cc520uu
Рейтинг:
Всего отзывов:0
Положительных:0
Добавить в корзину
Другие товары этого продавца
¥360063 648руб.
¥149926 653руб.
¥160028 448руб.
¥398070 367руб.
  • Информация о товаре
  • Фотографии





Products   Chassis   4U    [ SC847E16-R1400LPB ]



Key Features
• High Efficiency Power&
  High Storage Capacity



1. Extra High-Density 4U Storage Chassis



2. High-Availability Features: Redundant,
    Hot-pluggable cooling system, Power
    Supplies, Hot-swap drives



3. Redundant (1+1) 1400W Gold Level
    power supply with PMBus function



4. Maximum 3.5" hot-swap drives density
    36x (24 front + 12 rear) HDD bays
    E16: Expander supports SAS2 (6Gb/s)



5. 7x Low-profile expansion slots



6. 7x 8cm (middle) Hot-swap cooling
    fans, redundant cooling



Product SKUs
CSE-847E16-R1400LPB
  • SuperChassis 847E16-R1400LPB (Black)

Form Factor
4U chassis support for motherboards up to size ATX, E-ATX,
13.68" x 13"

Processor Support
Supports dual, single Intel® / AMD processors

Dimensions
Height
  • 7" (178mm)
Width
  • 17.2" (437mm)
Depth
  • 27.5" (699mm)
Gross Weight
  • 80 lbs (36.3 kg)
Available Colors
  • Black

Expansion Slots
7x Low-profile expansion slots

Drive Bays
Server Chassis
  • 36x (24 front + 12 rear) 3.5" Hot-swap HDD bays
  • SAS or enterprise SATA HDD only recommended

Backplane
HDD Backplane supports 36 SAS hard drives (24x front + 12 rear)

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Power Fail LED
Motherboard (for CSE-847E16-R1400LPB)
X8DA3X8DA6
X8DAEX8DAi
X8DAL-3X8DAL-i
X8DTL-6X9DB3-F
X9DB3-TPFX9DBi-F
X9DBi-TPFX9DR3-F
X9DRD-7LN4FX9DRD-7LN4F-JBOD
X9DRD-EFX9DRH-7F
X9DRH-7TFX9DRH-iF
X9DRH-iF-NVX9DRH-iTF
X9DRi-F
System Cooling
Fans
  • 7x 8cm hot-swap cooling fans
  • Redundant cooling

System Monitoring
Chassis intrusion switch

Operating Environment (System)
Operating Temperature Range
  • 5°C ~ 35°C (41°F ~ 95°F)
Non-Operating Temperature Range
  • -40°C ~ 60°C (-40°F ~ 140°F)
Operating Relative Humidity Range
  • 8% ~ 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1400W high-efficiency (1+1) redundant power supply with PMBus
AC Input
  • 1100W Output @ 100-140V, 13.5-9.5A, 50-60Hz
  • 1400W Output @ 180-240V, 9.5-7.0A, 50-60Hz
DC Output
  • 1100W: +12V/92A; +5Vsb/4A
  • 1400W: +12V/116A; +5Vsb/4A
With Distributor
  • +5V: 100 Amp
  • +3.3V: 30 Amp
  • -12V: 0.6 Amp
CertificationGold Level Certified
  Gold Certified
  [ Test Report ]

Regulatory (Power Supply)
Power Supply Safety / EMC
  • USA - UL listed, FCC
  • Canada - CUL listed
  • Germany - TUV Certified
  • Europe/CE Mark
  • EN 60950/IEC 60950-Compliant
Standard Parts List
 Part NumberQtyDescription
ChassisCSE-847E16-R1400LPB14U Chassis (Black) - 847E16-R1400LPB
BackplaneBPN-SAS2-826EL11826 backplane with single LSI SAS2X28 expander chip
BackplaneBPN-SAS2-846EL11Backplane supports upto 24 SAS/SATA
Power DistributorPDB-PT847-8824124pin standard output with 5V high current 100Amp power distributor board for SC847
Power SupplyPWS-1K41P-1R21400W 1U GOLD LEVEL PWS W/ PM BUS& WX3
Rear WindowMCP-240-82506-0N1LP Rear Window for SC825,825M,826,213,216
Cable(s)CBL-0160L2NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Drive TrayMCP-220-00075-0B36Black gen 5.5 hot-swap 3.5" HDD tray
Drive TrayMCP-220-00081-0N13.5" dummy HDD (hollow-panned) for MCP-220-00075-0B,RoHS/REACH,PBF
Cable(s)CBL-0071L1ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG
Cable(s)CBL-0217L116 pin control panel converter cable for SC826,846, 23.5cm, PBF
Front panelMCP-280-82601-0N1Front control board adapter (TB826) for SC216,826,936,846
Mounting RailMCP-290-00060-0N1Threaded rail adapter default for round hole rack
Mounting RailMCP-410-00007-0N1Rail screw bag
Fan(s)FAN-0126L4780x80x38 mm 7K RPM Chassis Middle Fan w/ Housing
Air ShroudMCP-310-49004-0N1SC847/417 DP X9 universal PC air shroud 1368x13/12x13MB
Mounting RailMCP-290-00057-0N1 setRail set, quick/quick, default for 4U 17.2
Optional Parts List
 Part NumberQtyDescription
Heatsink / Retention--Please refer to our Thermal Components Matrix
Cable(s)CBL-0166L

CBL-0168L-LP

CBL-0351L-LP

CBL-0352L-LP		-

-

-

-		SAS 826EL2/EL1 BP External Cascading Cable

SAS 826EL2 BP 2-Port Internal Cascading Cable

85CM 1-PORT EXT IPASS TO INT IPASS LP

85CM 2-PORT ETX IPASS TO INT IPASS LP
Cable(s)CBL-0108L-02

CBL-0281L		-

-		SFF 8087 to SFF 8087 Internal Backplane Cable, 39cm

SFF 8087 to SFF 8087 Internal Backplane Cable, 75cm
Drive TraysMCP-220-84701-0N

MCP-220-00043-0N		-

-		Internal drive bay for one 3.5" HDD or two 2.5" HDD

3.5" convert to 2.5" hot-swap HDD Tray
Mounting RailsMCP-290-00058-0N

MCP-290-00060-0N		-

-		19" to 26.6" rail set, Quick Release, Tool-less

Square hole to round hole rail adaptor set
Front Bezel
( Compatibility Table )		MCP-210-84601-0B-Front Bezel Cover, Black with Key Lock
SC847 JBOD SKUs List
 Part NumberQtyDescription
JBOD SKUs--Please go to SC847E16-RJBOD1 or SC847E26-RJBOD1
LCD/OLED Solutions--Please reference the LCD/OLED Display Solutions for details
