MS-98G3 Q87 Four Net Ten Strings I210 сетевая карта ATX Industrial Mother Board
Цена: 208 280руб. (¥9999)
Артикул: 40524448113
Доставка по Китаю (НЕ включена в цену):
465 руб. (¥22)
Вес товара: ~0.7 кг. Указан усредненный вес, который может отличаться от фактического. Не включен в цену, оплачивается при получении.
Описание товараПродавец:51简洁生活
Рейтинг:
Всего отзывов:0
Положительных:0
Добавить в корзину
Другие товары этого продавца
¥9999208 280руб.

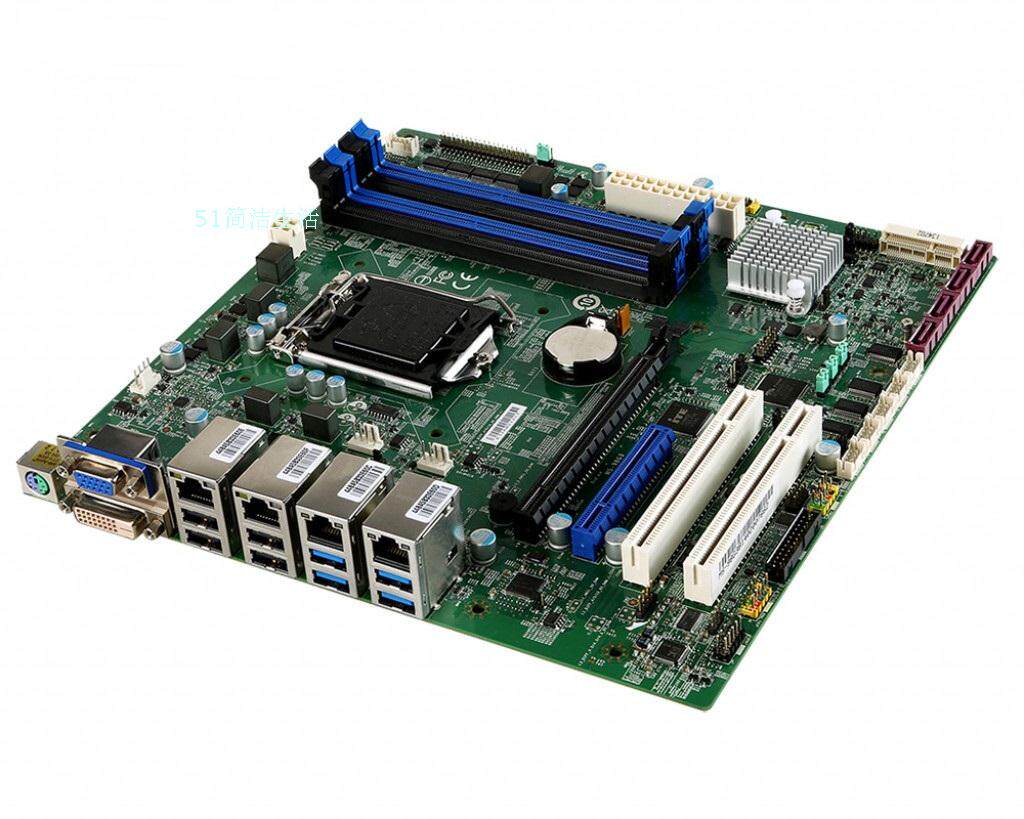

MSI MS-98G3
Q87, Four Nets Ten String, промышленная материнская комиссия
 | |||
| Processor | CPU | 4th Gen Intel®Рабочий компьютер H3 Core i7/i5/i3/ce ron процессор | |
| Frequency | Depends on CPU | ||
| L2 Cache | Depends on CPU | ||
| CPU Type | Socket (LGA 1150) | ||
| Chipset | Intel® Q87 Express | ||
| BIOS | AMI | ||
| Memory | Technology | Dual-channel DDR3 1066/1333/1600MHz | |
| Max. Capacity | Up to 32GB | ||
| Socket | 4 x 240-pin Long-DIMMs | ||
| Display | Controller | Intel® HD Graphics | |
| Graphic Memory | Shared system memory up to 1.7 GB SDRAM | ||
| LVDS | N/A | ||
| eDP | N/A | ||
| VGA | 1 | ||
| DVI | 1 (DVI-D) | ||
| HDMI | N/A | ||
| DisplayPort | N/A | ||
| Multiple Display | 2 independent displays | ||
| Display Interface | VGA up to 1920 x 1080 DVI up to 2560 x 1600 | ||
| Ethernet | Controller | 1 x Intel® I217-LM GbE-PHY 3 x Intel® I210-AT PCIe GbE LAN | |
| Audio | Controller | Realtek® ALC887 HD Audio Codec | |
| Super I/O | Controller | Fintek F81866AD-I + F81216AD | |
| H/W Monitor | Watchdog Timer | 255-level Watchdog Timer | |
| Smart Fan | Yes | ||
| TPM | Controller | Pin header | |

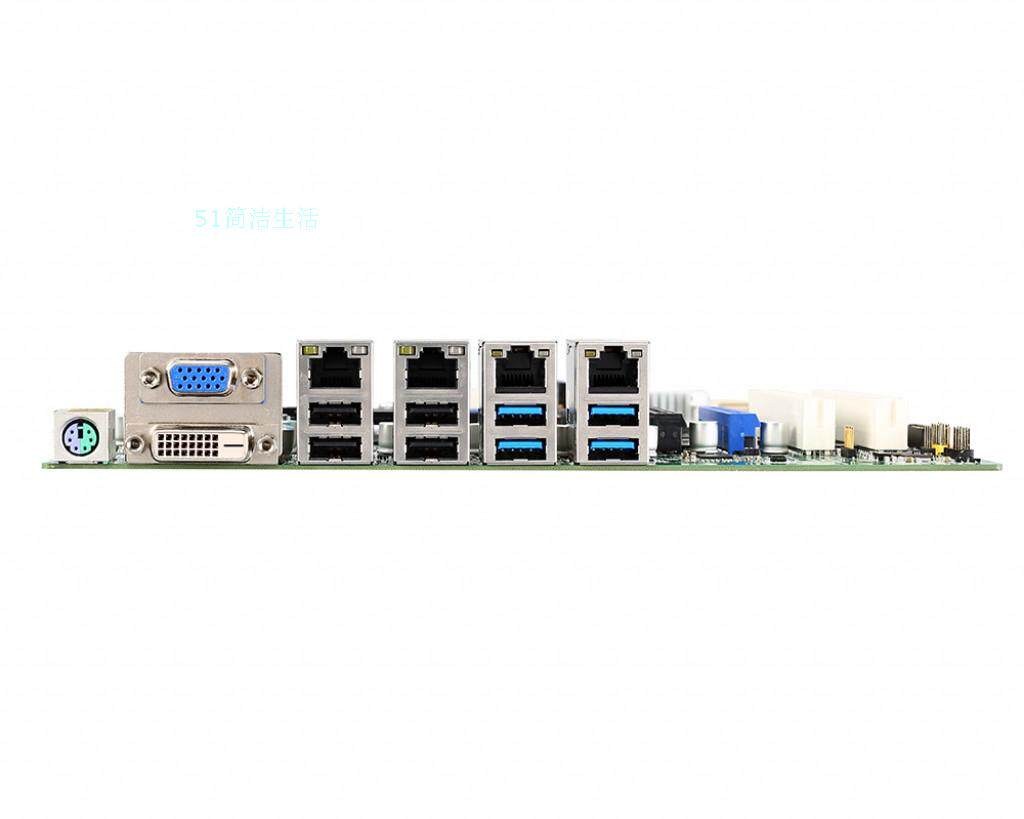

| I/O Interface | USB | 8 x USB 2.0 (4 x rear; 4 x internal) 4 x USB 3.0 (4 x rear) | |
| Serial | 10 x COM (internal) COM1~COM4: RS-232, 0V/5V/12V COM5: RS-232/422/485, 0V/5V/12V COM6: RS-232/422/485, without power COM7~COM10: RS-232, 0V/5V/12V | ||
| Parallel | 1 | ||
| PS/2 | 1 | ||
| GPIO | 8-bits (4 x GPI, 4 x GPO), 5V | ||
| Expansion Slot | PCIe x16 | 1 | |
| PCIe x4 | 1*PCIe x8 (signal is x4) | ||
| PCIe x1 | N/A | ||
| PCI | 2 | ||
| Mini-PCIe | 1 x Full-size, mSATA | ||
| Storage | SATA | 4 x SATA 3.0 | |
| IDE | N/A | ||
| eSATA | N/A | ||
| CFast | N/A | ||
| mSATA | 1 | ||
| CompactFlash | N/A | ||
| Power Supply | DC | N/A | |
| ATX | ATX-Power 24P, 12V-4P | ||
| Environment | Operating Temperature | 0 ~ 60°C | |
| Operating Humidity | 10 ~ 90%, non-condensing | ||
| Storage Temperature | -20 ~ 80°C | ||
| Storage Humidity | 10 ~ 90%, non-condensing | ||
| Form Factor | Dimensions | 244 mm x 244 mm (uATX) | |
| Weight | 0.6 Kg | ||
| Certification | EMC | FCC, CE, C-Tick, VCCI, BSMI | |
